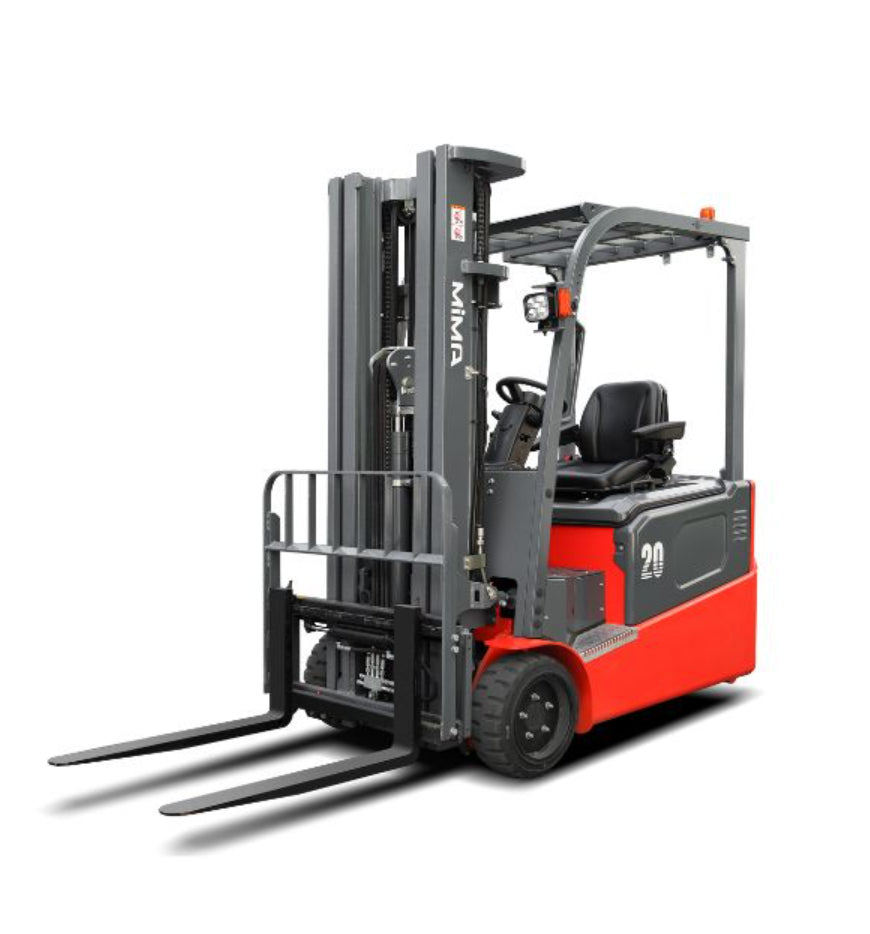

Mima Electric Counterbalance Forklift TKC Series 1.6- 2.0T
Mima Electric Counterbalance Forklift TKC Series 1.6- 2.0T is backordered and will ship as soon as it is back in stock.
Product Description:
- Model No.: TKC16 / TKC20
- Load capacity: 1600/2000kg
- Max. Lifting Height: 6000mm/20 feet
The second-generation TKC series high-performance counterbalanced forklifts come with various optional configurations.

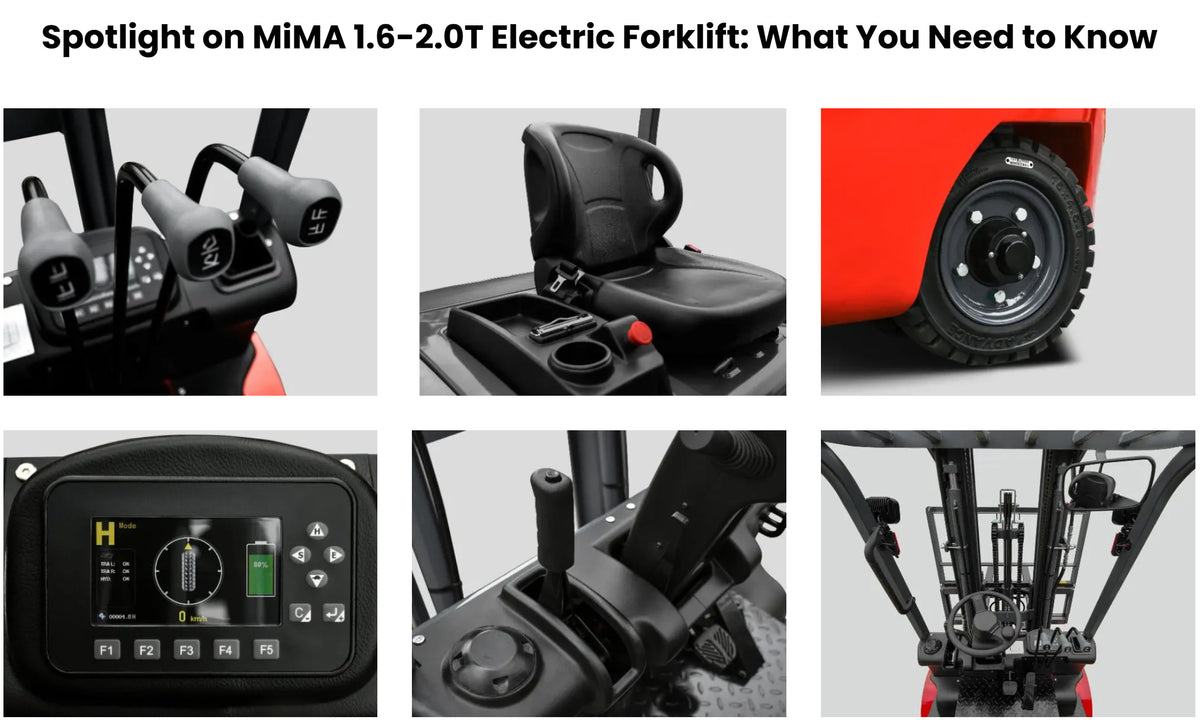

They feature front dual drive, electric steering, and a fully AC maintenance-free system. The front dual drive motors provide more power, ensuring better climbing and escape capabilities. The high-power motor guarantees efficiency. Ideal for handling small to medium-sized goods in narrow aisles, with high travel speeds, a large-capacity battery, excellent ergonomics, and easy operation and safety.
Applications:
- Handling and stacking medium to small loads in narrow spaces
- Ultra-low overhead guard design, suitable for container unloading operations
Technical Data
| Model | TKC16 | TKC20 | |
| Power type | Battery | Battery | |
| Operation | Seated | Seated | |
| Load capacity | Q(kg) | 1600 | 2000 |
| Load center distance | C(mm) | 500 | 500 |
| Front overhang | x(mm) | 365 | 370 |
| Wheelbase | y(mm) | 1400 | 1400 |
| Service Weight(incl/excl. battery) | kg | 3290/2640 | 3420/2650 |
| Axle loading, laden, front/rear | kg | 4105/785 | 4851/579 |
| Axle loading, unladen, front/rear | kg | 1514/1776 | 1605/1825 |
| Tyre type,front/rear | Solid Tyre | Solid Tyre |
| Tyre size, front | 18×7-8 | 200/50-10 | |
| Tyre size, rear | 140/55-9 | 144/55-9 | |
| Wheels,number front/rear (X=driven) | 2X/2 | 2X/2 | |
| Track width, front | b10(mm) | 952 | 952 |
| Track width, rear | b11(mm) | 199 | 199 |
| Mast tilt angle front/rear | α/β(°) | 6/6 | 6/6 |
| Mast retracted height | h1(mm) | Refer to the mast specification | Refer to the mast specification |
| Free Lift height | h2(mm) | 145 | 150 |
| Lift height | h3(mm) | 3300 | 3300 |
| Mast extended height | h4(mm) | Refer to the mast specification | Refer to the mast specification |
| Overhead guard height | h6(mm) | 2105 | 2105 |
| Seat height | h7(mm) | 1082 | 1082 |
| Ground clearance,centre of towing coupling | h10(mm) | 519 | 519 |
| Overall length | L1(mm) | 2880 | 2885 |
| Length to fork face | L2(mm) | 1960 | 1965 |
| Overall width | b1/b2(mm) | 1100/1070 | 1160/1070 |
| Fork dimensions | l/e/s(mm) | 920/100/35 | 920/100/40 |
| Installation level (IS02328) | 2A | 2A | |
| Fork carriage width | b3(mm) | 970 | 970 |
| Fork outside spread (max~min) | b5(mm) | 930~218 | 930~218 |
| Ground clearance below mast | m1(mm) | 105 | 105 |
| Ground clearance, center of wheelbase | m2(mm) | 100 | 100 |
| Aisle Width (1000×1200 Across Forks) | Ast(mm) | 3286 | 3291 |
| Aisle Width (800×1200 Along Forks) | Ast(mm) | 3410 | 3415 |
| More aisle width | Ast(mm) | Refer to the aisle specification | Refer to the aisle specification |
| Min. Turning radius | Wa(mm) | 1595 | 1595 |
| Travelling speed, laden/unladen | km/h | 15/15 | 14/15 |
| Travelling speed, laden/unladen, back | km/h | - | - |
| Lift speed, laden/unladen | mm/s | 400/550 | 360/550 |
| Lowering speed, laden/unladen | mm/s | 500/550 | 500/550 |
| Maximum traction force, laden/unladen | N | - | - |
| Gradeability, laden/unladen | % | 15/15 | 15/15 |
| Acceleration time of 10 meters, laden/unladen | S | 5.4/5 | 5.4/5 |
| Service brake | Hydraulic | Hydraulic | |
| Parking brake | Mechanical | Mechanical | |
| Drive motor, rating (S2-60min) | kw | AC4.8×2 | AC4.8×2 |
| Lift motor, rating (S3-15%) | kw | AC12 | AC12 |
| Lead-acid battery voltage/nominal capacity (standard) | V/Ah | 48/400 | 48/490 |
| Lead-acid battery capacity (optional) | Ah | 490/560/630 | 560/630 |
| Maximum battery capacity of the side pull model | Ah | 490 | 490 |
| Lead acid battery weight (standard) | kg | 650 | 770 |
| Lithium battery voltage/ nominal capacity (standard) | V/Ah | 48/300 | 48/410 |
| Lithium battery voltage/ nominal capacity (optional) | V/Ah | 48/410 | 48/460 |
| Lithium battery weight (standard) | kg | 127 | 155 |
| Hydraulic system pressure | Mpa | 15.5 | 15.5 |
| Noise level at operator's ear | dB(A) |
