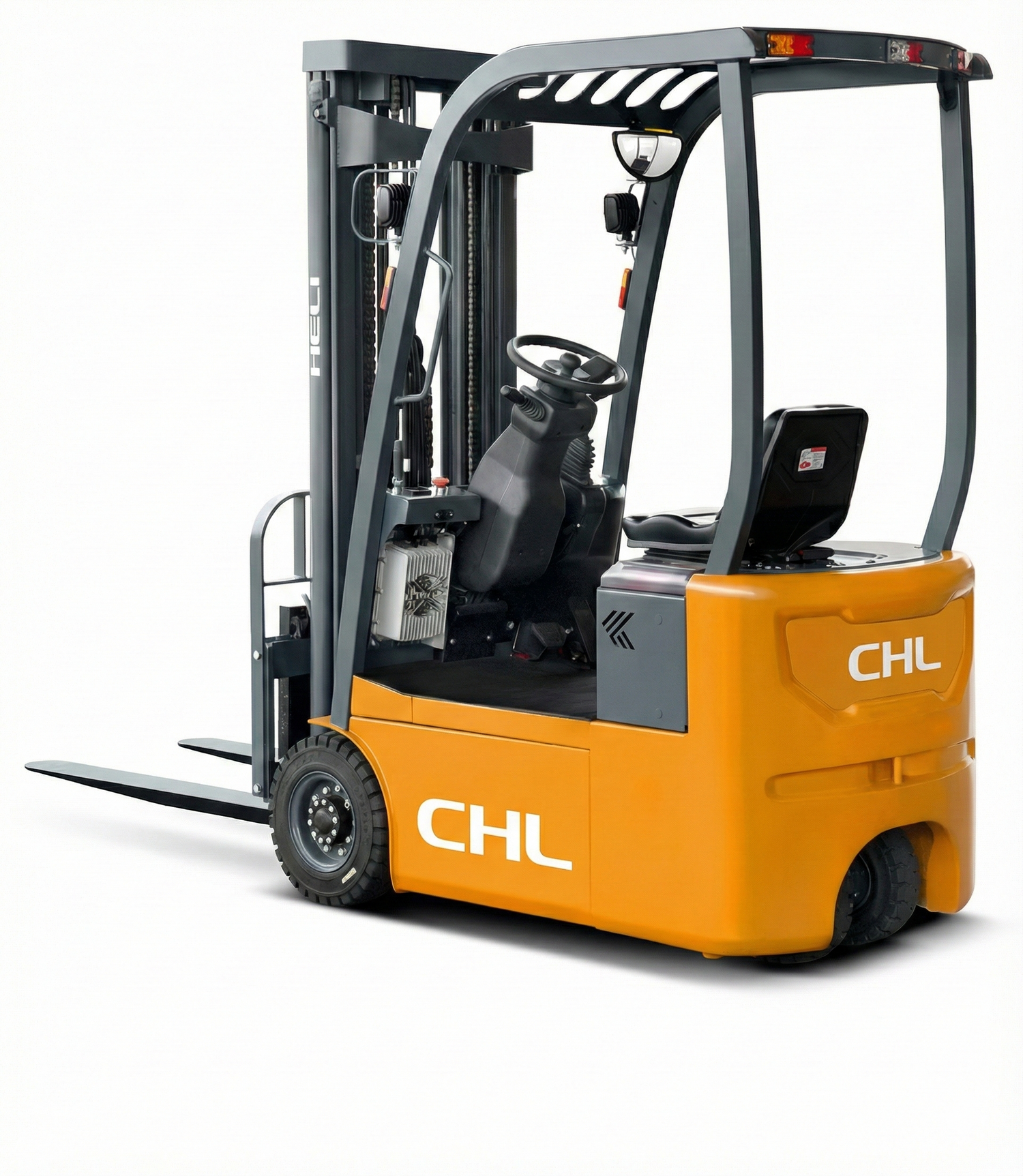

1,300-2,000 LBS Electric 3-Wheel Forklift H4-Series by HELI

Delivery and Shipping

Call 800-674-3699 For Delivery

Item	Unit	CPD08SQ	CPD10SQ	CPD12SQ
Identification
Series		H4 series	H4 series	H4 series
Model		CPD08SQ	CPD10SQ	CPD12SQ
Configuration number		A1LIH4	A1LIH4	A1LIH4
Load capacity	lbs	1300	1700	2000
Load center	in	24	24	24
Dimensions
Overhead guard height	in	77	77	77
Overall length(without fork)	in	66	66	67
Overall width	in	35	35	35
Min. outside turning radius	in	58	59	59
Weight
Total weight (with/without battery)	lbs	3682/3428	4100/3847	4387/4123
Wheels, Chassis
Tire size (front/rear)	in	4-8/5-5	4-8/4-5	4-8/4-5
Performance
Traveling speed(Load/Unloaded)	mph	6/7	6/7	6/7
Lifting speed, loaded/unloaded	fpm	49/75	47/75	45/75
Max. gradeability( loaded/unloaded)	%	13/15	12/15	10/15
Battery voltage/rated capacity	V/Ah	24/250	24/250	24/250
Drive motor-60min. rating	HP	4	4	4
Pump motor-15min. rating	HP	6	6	6
Drive motor control mode		MOSFET/AC	MOSFET/AC	MOSFET/AC
Controller		CURTIS	CURTIS	CURTIS

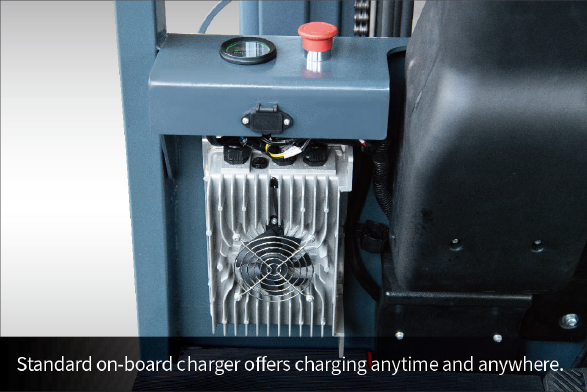

Charger Specification			1PH/110V
