EquipMasters

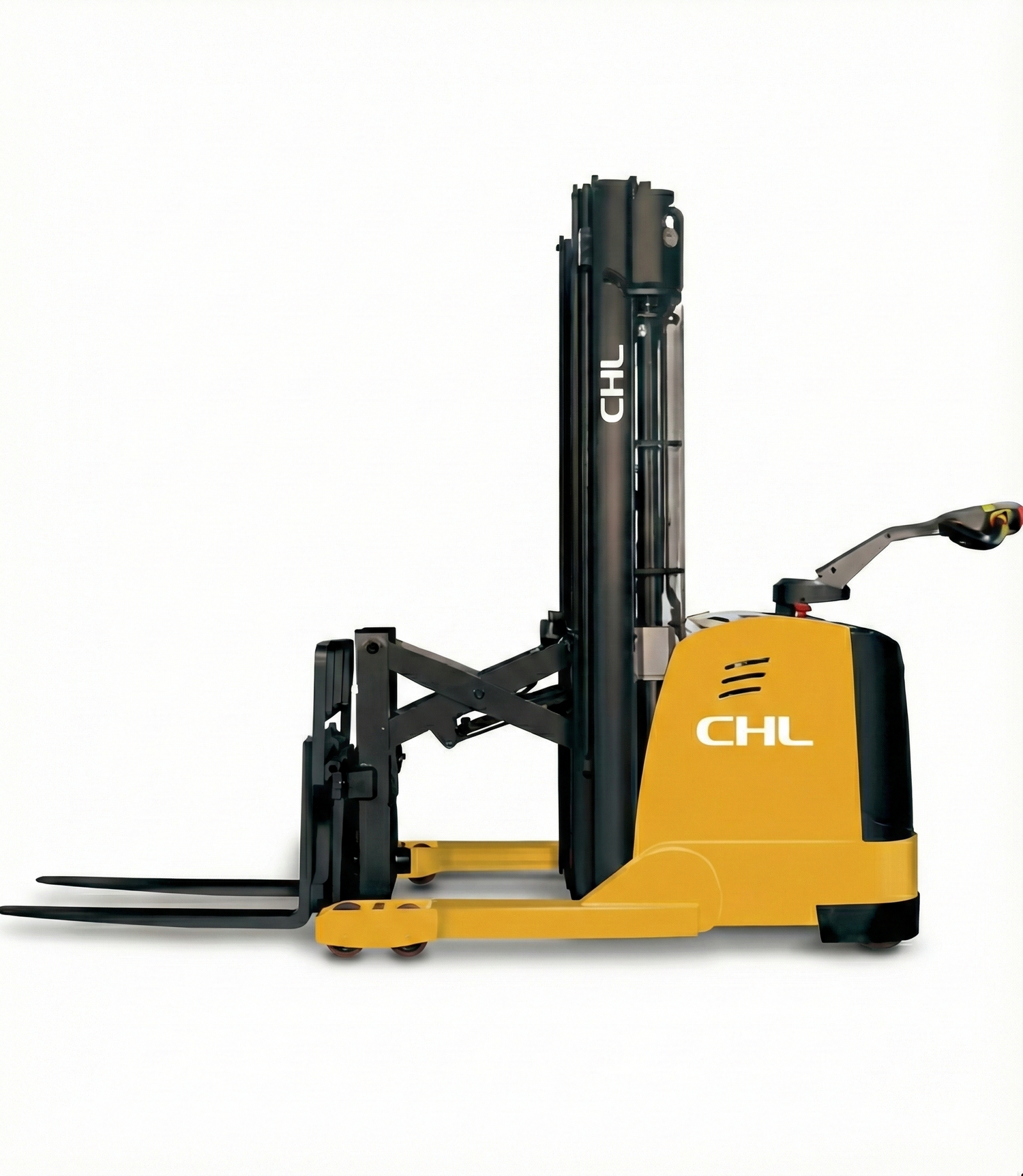

2,000-4,000 LBS Electric CHL CQDH15R Scissor Stacker Made by HELI

Delivery and Shipping

Call 800-674-3699 For Delivery

Model  Unit CQDH15R CQDH20R
Type   Single scissor Dual scissor Single scissor Dual scissor
Loading capacity lbs 3000 2000 4000 2000
Load center in 20 20 20 20
Operating type   Walkie Walkie Walkie Walkie
Wheels type   PU PU PU PU
lift height in 98/118/138/157 177/197/217 98/118/138/157 177/197/217 98/118/138/157 177/197/217 98/118/138/157 177/197/217
Max.extend height in 133/153/172/192 212/235/251 133/159/179/198 218/238/258 134/153/173/192 212/232/251 140/159/178/198 217/237/257
Mast lowered height in 74/83/93/103 86/92/98 74/84/94/103 86/92/99 73/83/93/103 86/92/98 73/83/93/103 86/92/98
Free lift in NA 62/66/71 NA 62/66/71 NA 62/66/71 NA 62/66/71
Overall length in 93/94 100/101 96.4/97.4 99.8/100.6
Overall width in 47/51/37 49/37 48.5/50.8 48.5/50.8
Min.outside turning radius in 66.6/67.3 68.6/69.4 70/70.8 66.1/66.8
Min.Aisle width for pallets 1000 x 1200 in 111.6/112.9 112.6/113.5 115.2/116 113.7/114.8
Travel speed.laden/unladed mph 3/3.1 3/3.1 3/3.1 3/3.1
Lift speed.laden/unladed fpm 18.7/23.6 18.7/23.6 15.7/23.6 19.7/33.5
Battery voltage/capacity V/Ah 24/225 24/225 24/400 24/400
Reach distance in 20 47.2 20 47.2
Lead acid optional   0 0 0 0
