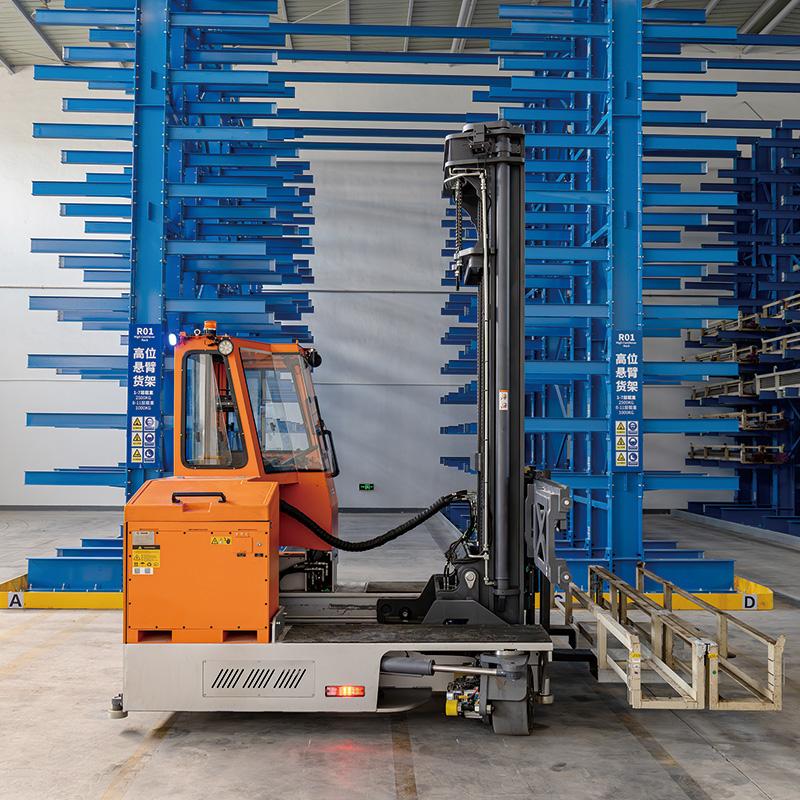

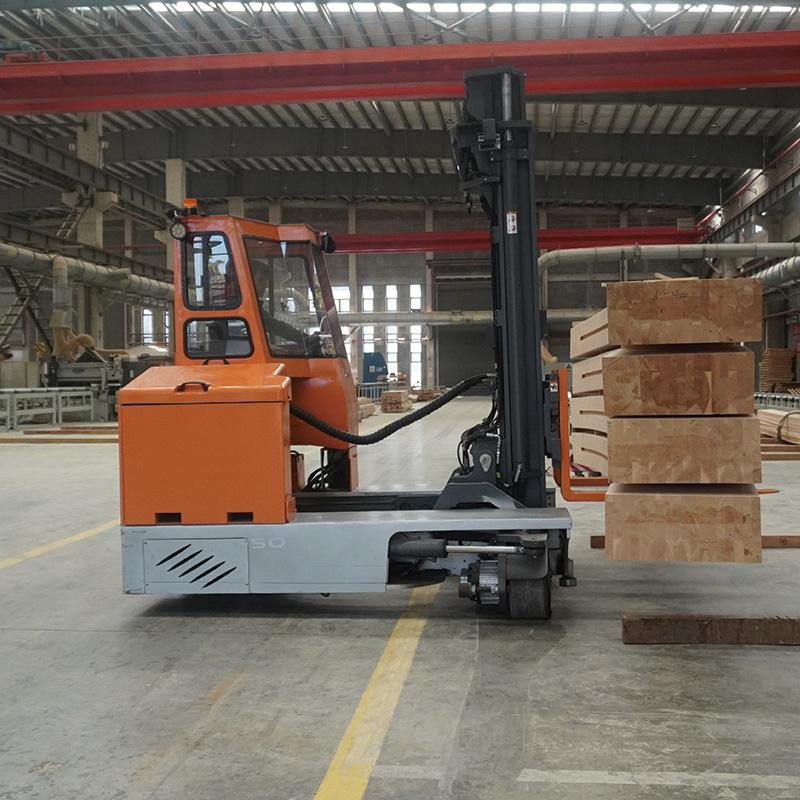

Zowell 5 ton Electric Multi Directional Forklift

WSHM is a multi-directional forklift, which is suitable for handling, stacking, and high-lifting conditions of super-long and heavy materials (for example: goods over 15 meters, 5 tons and over), with a lifting height of 3m-10m.

This multi-directional forklift is specially designed for extremely narrow aisle operations: the side stacking channel is ≤2750mm, and it adopts unique patented technology, which can maintain excellent straightness for long-distance sideways driving. It adopts all-wheel service brake and Parking brake, full-load emergency braking under full-speed sideways driving can still maintain a stable body posture.

• Brand: Zowell

• Item NO.: WSHM150

• Product Origin: Suzhou, China

• Color: Orange and Grey

As the first multi-reach forklift suitable for handling 5-ton heavy-duty long materials in China, Zhuoyi "Crab Lux" has a number of innovative patented technologies, and has the advantages of high efficiency, low failure rate, and low maintenance cost. Among them, the dual patented technologies of all-wheel drive and hydraulic synchronous cross-steering make this kind of multi-directional large-tonnage forklift have the possibility of continuous operation under outdoor harsh working conditions, which solves the problem of the interaction between large and heavy materials indoors and outdoors in many enterprises. The problems of transshipment and stacking have improved the handling efficiency of oversized goods and reduced the operating costs of logistics links. It can be said to be an ideal choice for industries such as pipes, plates, logs, furniture, mattresses, cloth rolls, glass, heavy molds, cabinets, boxes, and elevators.

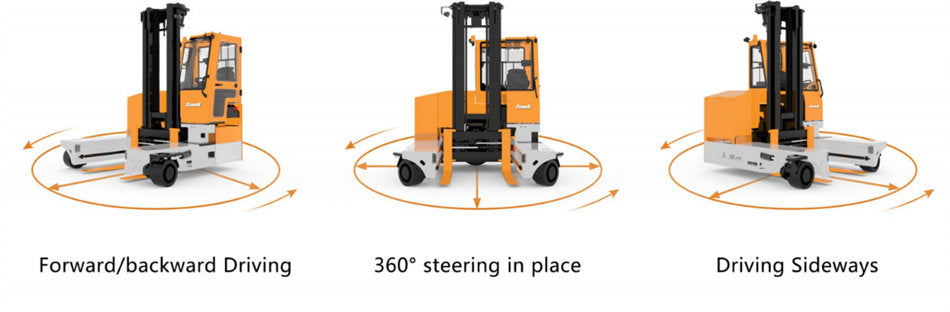

Zowell  "Crab Lux" WSHM is a multi-forward forward-moving forklift-with multiple driving modes such as straight travel, side travel, and slewing in situ, and is easy to operate and switch freely.

The WSHM multi-forward forklift, which integrates a number of patented technologies, is suitable for handling, stacking, and high-lifting conditions of super-long and heavy materials (such as: more than 15 meters, 5 tons and more). The lifting height is 3m-10m.

This multi-reach forklift is specially designed for extremely narrow aisle operations: the side stacking channel is ≤2750mm, and it adopts a unique patented technology, which can maintain excellent straightness for long-distance sideways driving. It adopts all-wheel service brake and Parking brake, full-load emergency braking under full-speed sideways driving can still maintain a stable body posture. Zhuoyi "Crab Lux" is designed to safely and efficiently solve the problem of handling and stacking heavy and long materials in extremely narrow passages, so as to ensure that the utilization rate of enterprise storage is improved, the efficiency of logistics operations is improved, and cost reduction and efficiency increase are realized.

For asphalt, potholes, and slippery roads: We have standard imported solid rubber tires that are wear-resistant, puncture-resistant, and anti-skid to ensure the smooth running of forklifts and handle logistics problems such as outdoor complex road transfers with ease.
Standard fully enclosed cab - noise insulation, dustproof, outdoor work without fear of wind, frost, rain and snow.

All-wheel all-drive: full-time all-wheel drive, full-time multi-drive, timely multi-drive, providing surging power for outdoor conditions of large climbing roads. The climbing ability is greater than or equal to 12%, the working condition is adaptive to the power source, and the fixed wheel angle is hydraulically locked in different modes. Ensure that vehicles and goods pass through the slope section of the road smoothly.

Specifications:

Characteristic	1.1	Producer		Suzhou Pioneer	Suzhou Pioneer	Suzhou Pioneer	Suzhou Pioneer
	1.2	Brand		Zowell	Zowell	Zowell	Zowell
	1.3	Truck Model		WSHM50	WSHM50S	WSHM40	WSHM30S
	1.4	Power Supply		Electric	Electric	Electric	Electric
	1.5	Operation Type		Sit on	Sit on	Sit on	Sit on
	1.6	Load Capacity	Q(kg)	5000	5000	4000	3000
	1.7	Load Center	C(mm)	600	600	600	600
	1.8	Wheelbase	y(mm)	2045	2045	2045	1905
Weight	2.1	Truck weight(including battery)	kg	7300	8000	6600	6700
	2.2	Battery Weight(±5%)	kg	1500	1500	1500	1400
Tyre	3.1	Tyre Type Front Wheel/Rear Wheel		Strong wear-resistant rubber tyres	Strong wear-resistant rubber tyres	Strong wear-resistant rubber tyres	Strong wear-resistant rubber tyres
	3.2	Front load wheel (diameter × width) single tire	mm	φ405×220	φ405×220	φ405×220	φ405×220
	3.3	Rear driving wheel (diameter × width) single tire	mm	φ680×248	φ680×248	φ680×248	φ680×248
	3.4	Number of tires drive/load	pcs	1X/2	1X/2	1X/2	1X/2
	3.5	Front track	b1(mm)	2035	2035	2035	2015
