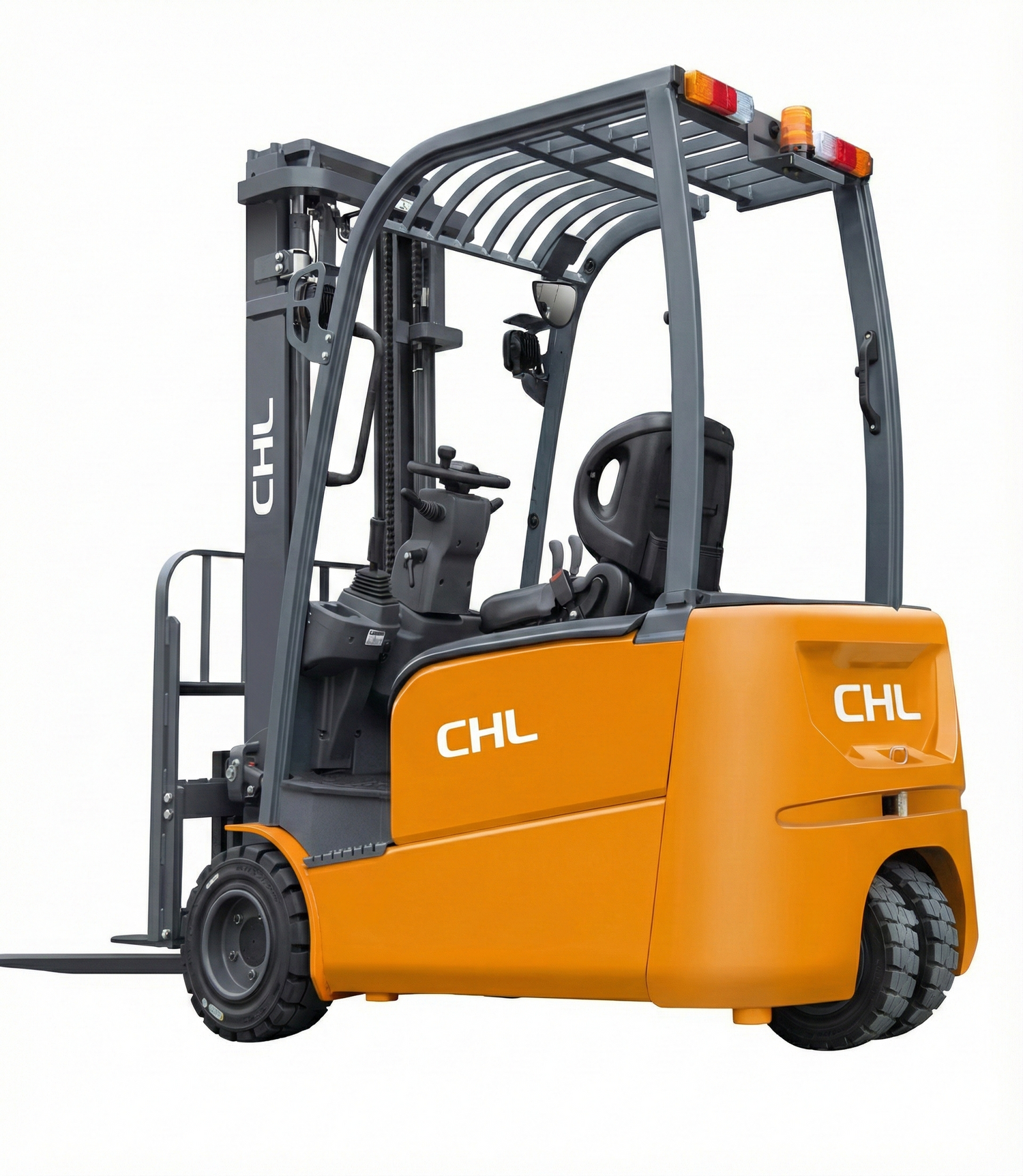

3000-4000 LBS Electric Forklift by HELI, G3 Series, 80V, 3-Wheel

Delivery and Shipping

Call 800-674-3699 For Delivery

Item	Unit	CPD13SQ	CPD15SQ	CPD16SQ	CPD18SQ	CPD20SQ
Identification
Series		G3 series	G3 series	G3 series	G3 series	G3 series
Model Designation		CPD13SQ	CPD15SQ	CPD16SQ	CPD18SQ	CPD20SQ
Configuration number		A2LIG3-M	A2LIG3-M	A2LIG3-M	A2LIG3-M	A2LIG3-M
Load Capacity	lbs	2600	3000	3200	3500	4000
Load Center	in	24	24	24	24	24
Dimensions
Overhead guard height	in	80	80	80	80	80
Overall length(without fork)	in	73	74	74	76	81
Overall width	in	42	42	42	44	44
Min. outside turning radius	in	58	60	60	61	66
Performance
Travel speed, loaded/ unloaded	mph	10/10	10/10	10/10	10/10	10/10
Lifting speed, loaded/ unloaded	fpm	88/118	88/118	88/118	85/118	79/118
Max. gradeability(loaded)	%	20	20	20	20	20
Battery voltage/ rated capacity(5h)	V/ Ah	80/150	80/202	80/202	80/202	80/202
