Mima Stand-on Counterbalance Forklift MN18 1.8T
Mima Stand-on Counterbalance Forklift MN18 1.8T is backordered and will ship as soon as it is back in stock.

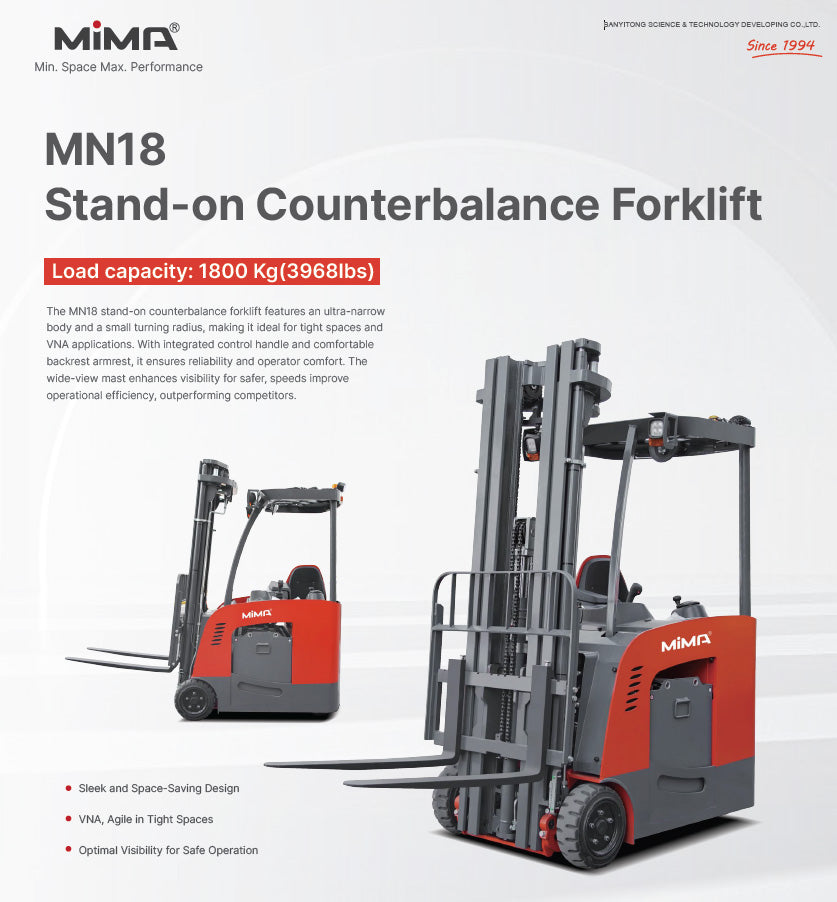

The new MN series high-performance stand-on counterbalanced forklift offers multiple configuration options.
Featuring dual front drive, EPS, and a maintenance-free AC system, it delivers enhanced power for climbing and traction. A high-power motor ensures efficiency, while its compact design, VNA adaptability, high travel speed, large-capacity battery, ergonomic design, and safety features enhance operation.
Product Description:
- Load Capacity: 1800kg
- Max. Lifting Height: 6200mm
- Operation Type: Stand-on
Specifications
|
Brand |
|
MIMA |
|
Model |
|
MN |
|
Vehicle Code |
|
1MN18 |
|
Power type |
|
Battery |
|
Operation |
|
Stand-on |
|
Load capacity |
Q(kg) |
1800 |
|
Load center distance |
C(mm) |
500 |
|
Front overhang |
x(mm) |
287 |
|
Wheelbase |
y(mm) |
1260 |
|
Service weight (with/without battery) |
kg |
4270/3220 |
|
Axle loading, laden front/rear |
kg |
5099/704 |
|
Axle loading, unladen front/rear |
kg |
2662/1641 |
|
Tyre type |
|
Solid rubber tyre |
|
Tyre size, front |
mm |
406×152×266.7 |
|
Tyre size, rear |
mm |
254×127×165 |
|
Wheels,number front/rear (X=driven) |
|
2X/2 |
|
Track width, front |
b10(mm) |
915 |
|
Track width, rear |
b11(mm) |
180 |
|
Mast tilt angle front/rear |
α/β(°) |
3/5 |
|
Lift height |
h3(mm) |
6200 mm |
|
Overhead guard height |
h6(mm) |
2261 |
|
Overall length |
L1(mm) |
2695 |
|
Length to fork face |
L2(mm) |
1775 |
|
Overall width |
b1/b2(mm) |
1067/1065 |
|
Fork dimensions |
l/e/s(mm) |
920/100/35 |
|
Installation level(ISO2328) |
|
2A |
|
Fork carriage width |
b3(mm) |
996 |
|
Fork outside spread (max.- min.) |
b5(mm) |
930~218 |
|
Ground clearance (full load, mast center) |
m1(mm) |
70 |
|
Ground clearance (wheelbase center) |
m2(mm) |
56 |
|
Aisle width (1000×1200 cross forks) |
Ast(mm) |
3108 |
|
Min. turning radius |
Wa(mm) |
1488 |
|
Travelling speed, laden/unladen |
km/h |
12/12 |
|
Lift speed, laden/unladen |
mm/s |
350/700 |
|
Lowering speed, laden/unladen |
mm/s |
550/550 |
|
Gradeability, laden/unladen |
% |
15/15 |
|
Service brake |
|
Electromagnetic |
|
Parking brake |
|
Electromagnetic |
|
Drive motor, rating S2=60 |
kw |
AC4.5×2 |
|
Lift motor, rating S3=15% |
kw |
AC10.6 |
|
Lead-acid battery voltage/nominal capacity(standard) |
V/Ah |
48/700 |
|
Max. battery capacity for side-pull models |
Ah |
700 |
|
Lead-acid battery weight (standard) |
kg |
1050 |
|
Lithium Battery voltage/nominal capacity(standard) |
V/Ah |
48/460 |
|
Lithium battery weight(standard) |
kg |
240 |
