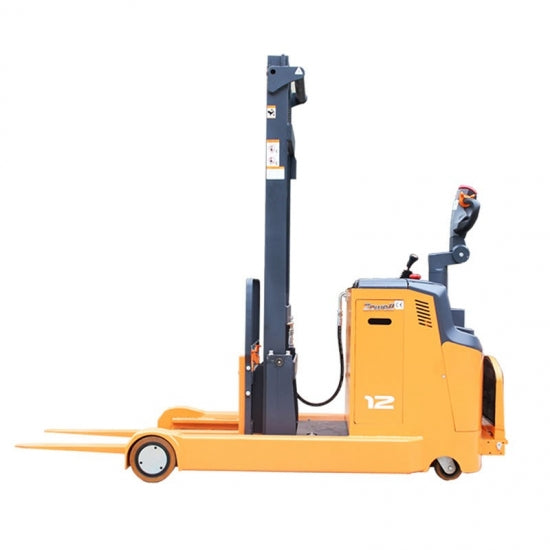

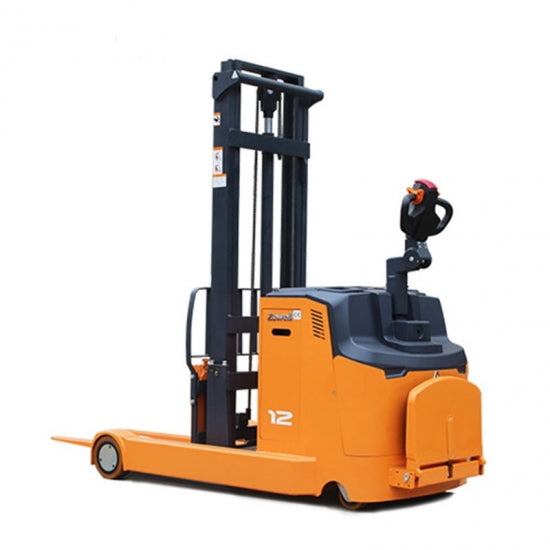

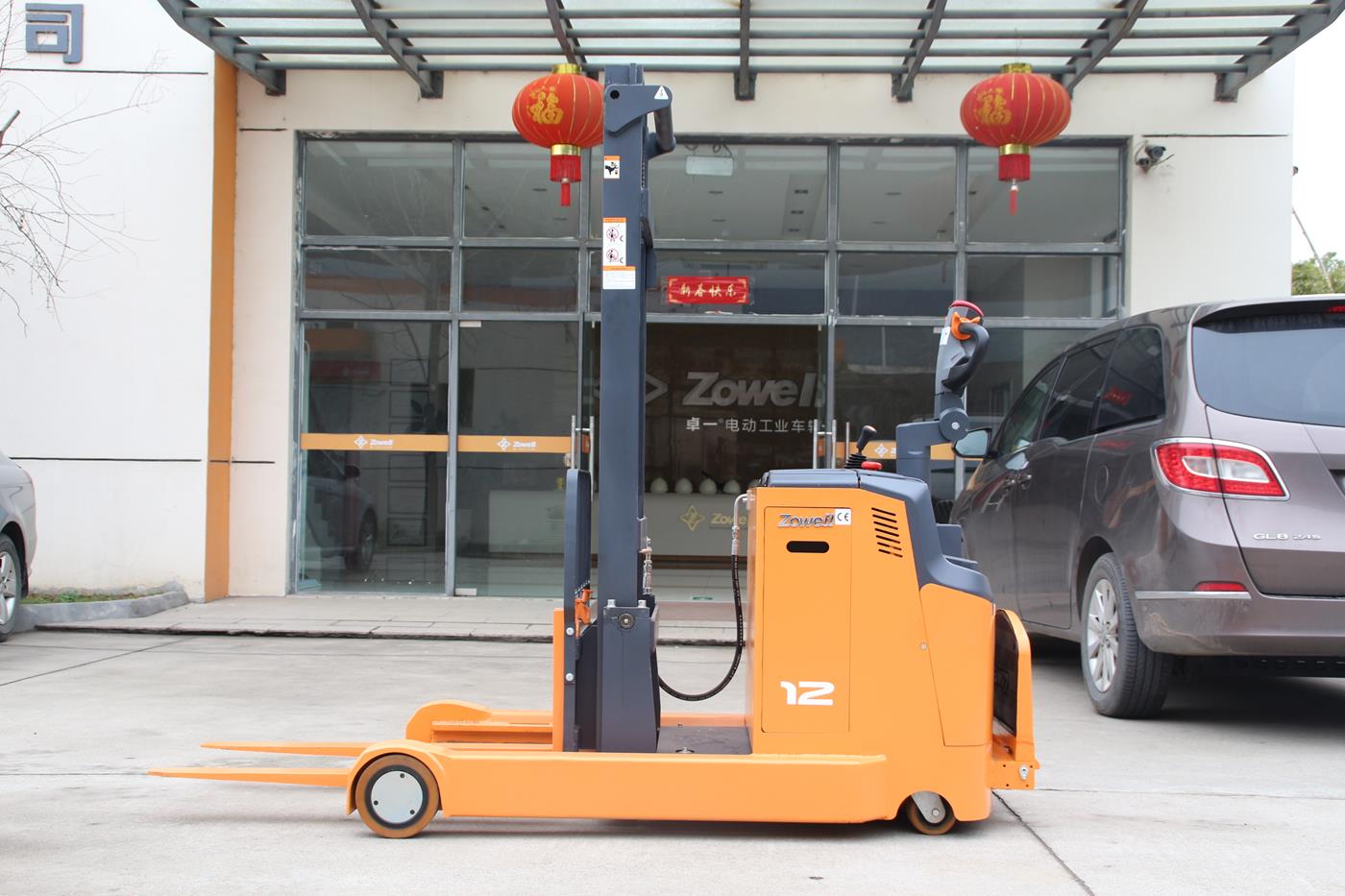

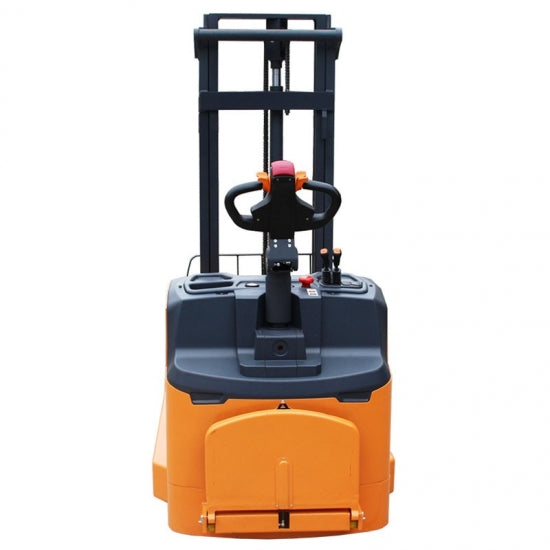

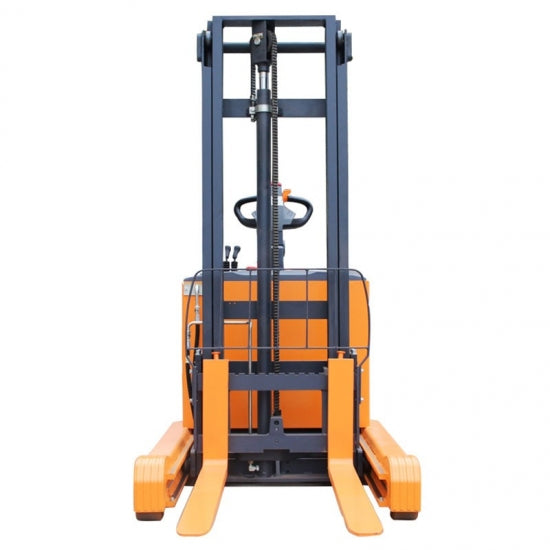

Zowell 1.2 Ton Electric Reach Stacker

Name: Zowell 1.2 Ton Electric Reach Stacker
Brand: EquipMasters
Availability: OutOfStock

Delivery and Shipping

Call 800-674-3699 For Delivery

Main Features:

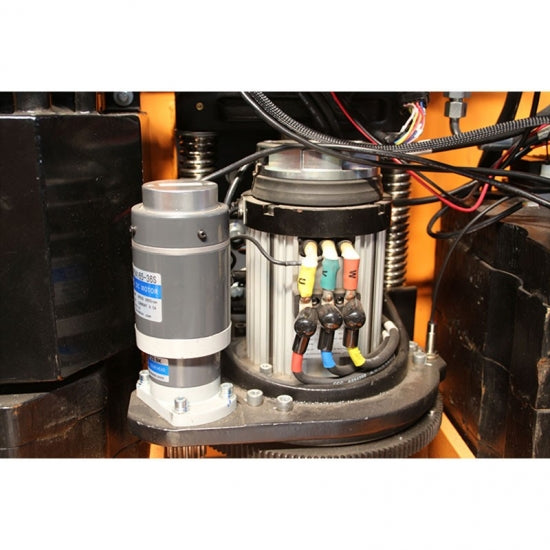

1.AC Technology

2. Standard with EPS function

3. With platform

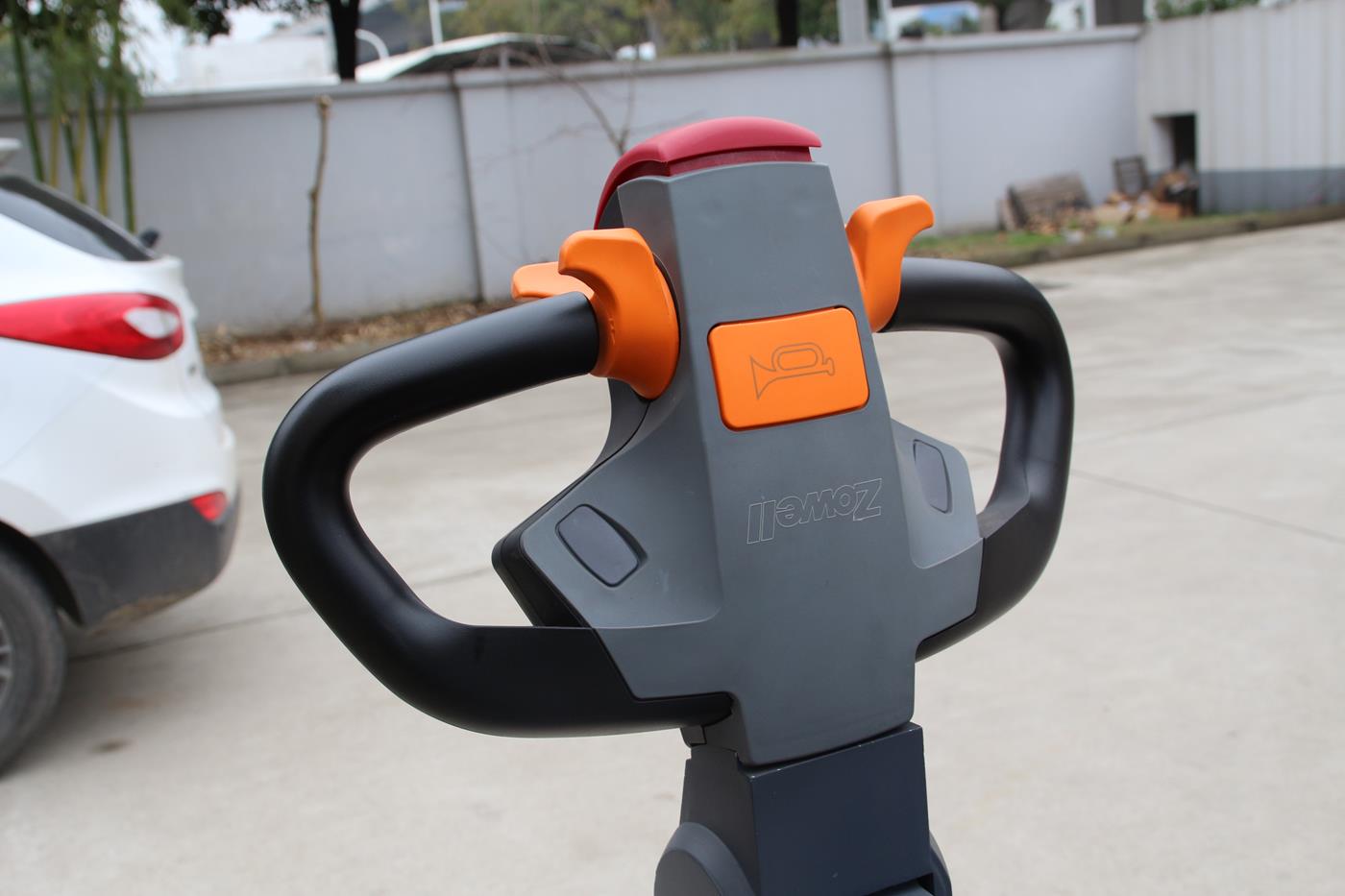

4. With Frei Handle

Specifications:

Specification for XRA12 electric reach stacker
Identification	1	Product model		XRA12
	2	Power supply		Electric
	3	Operating type		Standing
	4	Load capacity	Q kg	1200
	5	Load center distance	C mm	500
	6	Front suspension	X mm	394
	7	Wheelbase	Y mm	1380

Dimensions	1	Height with mast closed	h1 mm	Table 1
	2	Free lift	h2 mm
	3	Lifting Height	h3 mm
	4	Height with mast Extended	h4 mm
	5	Forks height,lowered	h5 mm	30
	6	Height of handle in drive position (Max/Min)	h6 mm	/
	7	Overall length	L1 mm	2610
	8	Length to face of forks	L2 mm	1260
	9	Overall width	b1 mm	980
	10	Fork dimensions (Forging)	s/e/l mm	100/30/1070
	11	Forks width	b3 mm	200-640
	12	Reach length	L3 mm	530
	13	Minimum ground clearance	m mm	44
	14	Aisle width for pallets 1000x1200 lengthways	Ast mm	2723(walkie)/2825(standing)
	15	Aisle width for pallets 800x1200 lengthways	Ast mm	2673(walkie)/2775(standing)
	16	Turning radius	Wa mm	1672
	17	Inside width between the guides	b4 mm	718
	18	Mast Tilting degree (forward/backward)	α/β °	2/4
