Zowell 1.5 Ton Electric Reach Stacker

Description:

Zowell XR electric reach stacker is typically designed for stacking of medium and high intensity, which includes pallet transport and stacking in warehouses, manufacturing industries or retail stores. And its loading capacity is from 1500kgs to 2000kgs. It can work independently as well as in connection with a platform. A platform is needed for long-distance transport.

• Brand: Zowell

• Item NO.: XR15

• Product Origin: China

• Color: Orange

Detail features

1. Front moving function
The mast can move forward 580cm which can reduce the turning radius of the truck as well as ensure its running stability.

2. The fork can tilt forward and backward for easy loading and unloading of goods and material, thus improving the transporting stability of the reach truck.

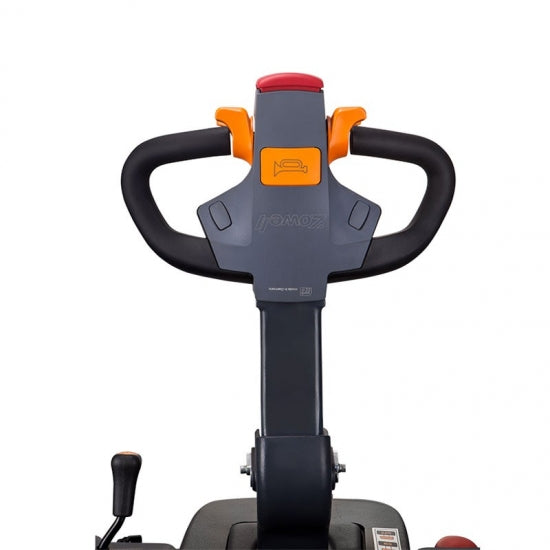

3. This reach truck adopts an original multifunctional handle from Frei, Germany. The operation is comfortable and the functional buttons can realize precise control.

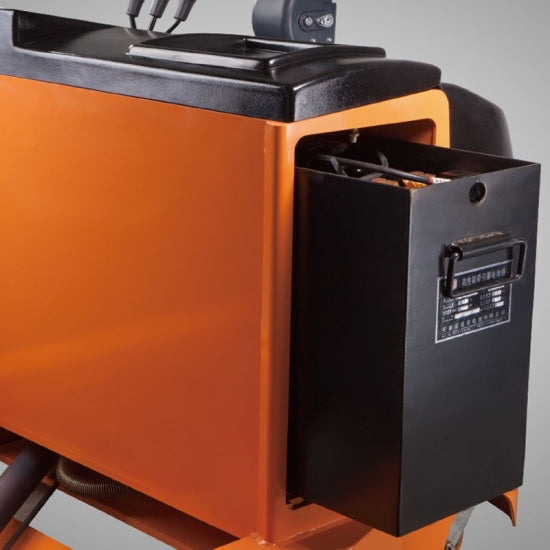

4. Side loading and unloading of storage battery
he side door of the truck and battery cover can be opened, then the battery can be removed from the side door. So the changing and maintenance of the storage battery is convenient. There are optional batteries such as FAMM, GS, HOPPECKE, Trojan.

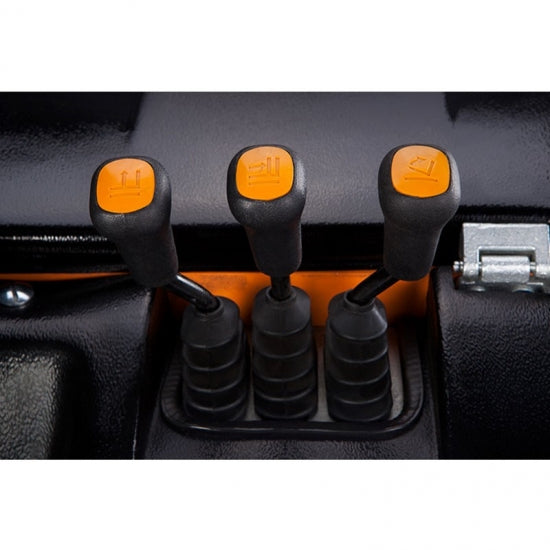

5. Multipath valve stem control
Different valve stem has different functions such as fork lifting/descending, fork tilting forward/backward, gantry moving forward/backward. The distribution of valve stem is compact. The operator can carry out operation with only one finger, realizing precise control.

6. The ZF driving unit is imported from Germany. It adopts vertical installation. It also delivers superior performance, stability, and reliability.

7. Emergency power-off switch: the power can be rapidly cut off in emergencies to ensure safety.

8. Multifunctional meter can display failure code, electric quantity and some other information. The operators can know the running condition of the truck via the meter.Pl

Specifications:
