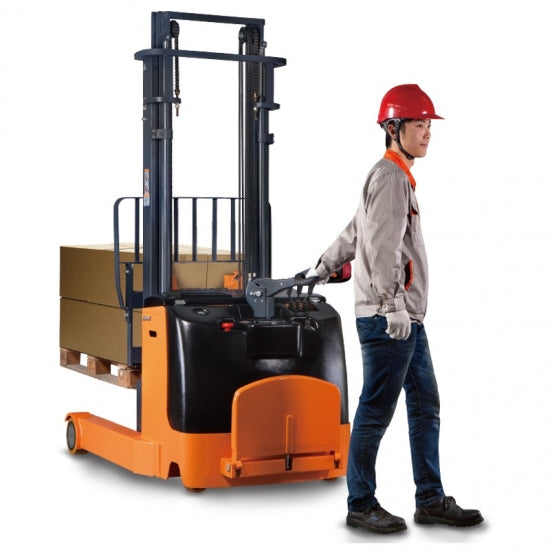

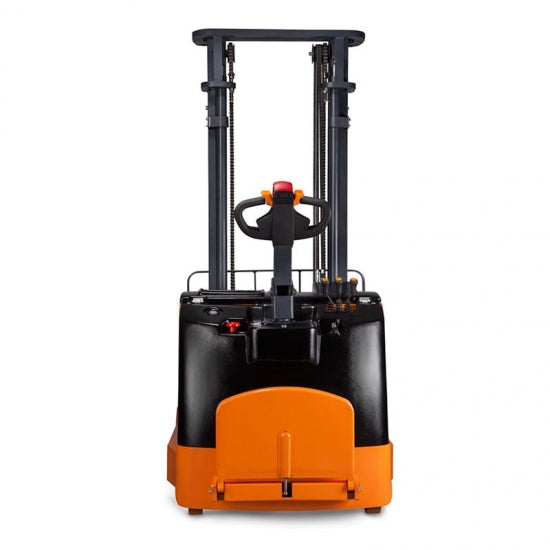

Zowell 2 ton Electric Reach Stacker

Delivery and Shipping

Call 800-674-3699 For Delivery

Description:

2 ton Electric Reach Stacker, Fork can extend 580mm. Fork can extend 580mm.

  • Brand: Zowell

  • Item NO.: XR20

  • Product Origin: China

  • Color: Orange

Product Description:

  1. Reach function: Fork can extend 580mm
    2. Fork can tilt forward / backward for safer load handling.
    3. Germany Mannstaedt forklift profile for mast building.
    4. SWISS BUCHER brand or ITALY HYDRAPP Hydraulic pump.
    5. Regenerative braking function
    6. CURTIS electronic controller
    7. Germany Frei handle

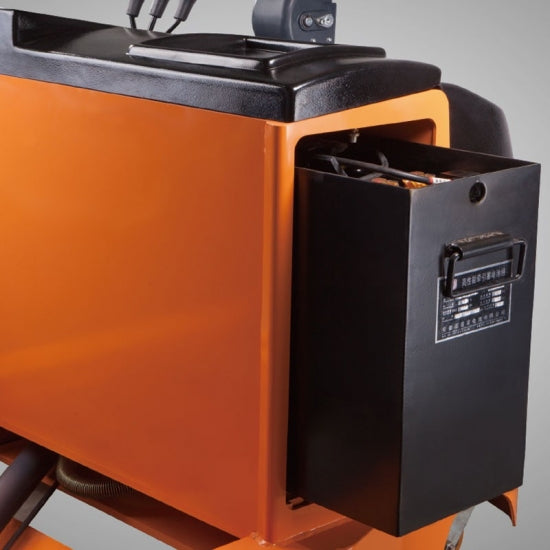

    8. Battery side extraction: The side gate and the battery cover are openable. Battery can be removed from the side, making it very convenient to replace and maintain batteries.

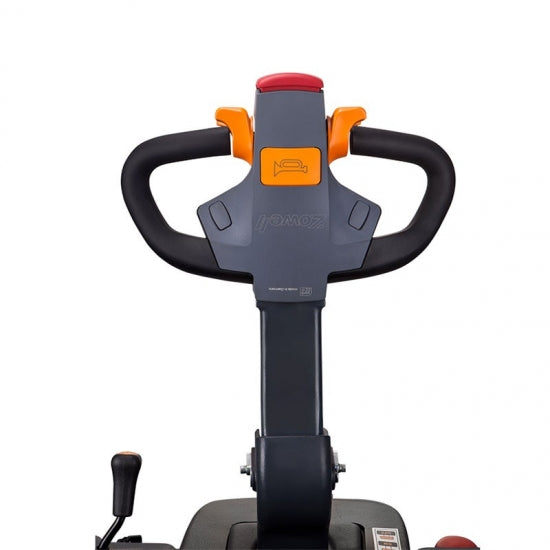

    9. Emergency reversing device in the handle provides improved operating safety.
    10. Emergency power disconnect switch.
    11. Braking applied with handle upright and horizontal position, increasing the safety of the truck.
    12. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.

Specifications:

Specification Sheet - XR Electric Reach Stacker
Identification 1 Product model   XR20/XREA20
2 Power supply Electric
3 Operating type Standing
4 Load capacity Q      kg 2000
5 Load center distance C      mm 500
6 Load distance X      mm 446
7 Wheelbase Y      mm 1590
Dimensions 1 height  Forks lowered h1     mm Height data is on the bottom — Height data choices
2 free lifting height h2     mm
3 lifting height h3     mm
4 Height with mast Extended h4     mm
5 Minimum ground clearance h5     mm 40
6 Height of handle in drive position (Max/Min) h6   mm 1380/1020
7 Overall length L1     mm 2475
8 Length to face of forks L2     mm 1405
9 Overall width b1     mm 1090
10 Fork dimensions (Forging) s/e/l  mm 100/40/1070
11 Forks width b3     mm 200-730
12 Reach length L3     mm 580
13 Minimum ground clearance m      mm 55
14 Aisle width for pallets 1000x1200 lengthways Ast    mm 2892
15 Aisle width for pallets 800x1200 lengthways Ast    mm 2930
16 Turning radius Wa     mm 1874
17 Inside width between the guides b4     mm 772
Electric Motor 1 Drive motor rating kw DC 1.1/AC 1.5
2 Lift motor rating kw 2.2/3.0
3 Battery voltage / nominal capacity V/Ah 24/240*、280
4 Battery weight kg

240*、262
Height Data Choices Single Dual Triple
1 Height with mast closed h1 2046 2246 1180 1280 1780 1880 2030 2180 2280 2430 2580 1741 1896 1966 2066 2166 2236 2306 2406
2 Free Lift h2 1104 1304 83 83 83 83 83 83 83 83 83 800 965 1025 1125 1225 1285 1345 1445
3 Lift h3 1600 1800 1300 1500 2500 2700 3000 3300 3500 3700 4000 3500 4000 4200 4500 4800 5000 5200 5500
4 Height with mast Extended h4 2541 2741 2241 2441 3441 3641 3941 4241 4441 4641 4941 4441 4941 5141 5441 5741 5941 6141 6441
