Description:
Zowell XT20 2 ton electric tow truck is mainly used for towing and order picking, and it is especially suitable for goods that move in the continuous flow. It is widely used for industries that where just-in-time principles are needed.
-
Brand: Zowell
-
Item NO.: XT20
-
Color: Orange color(Customized color is also acceptable)
Product Detail:
2 ton Electric Tow Tractor
Where Zowell electric towing tractor can be used for?
1.Wide space
2.High delivery frequency
3.Long working hours
4.Poor ground conditions, need solid wheel
5.Limited operating space
6.Floor working
7.Plant area needs turnover
8.Need to transport finished goods
Specifications:
| Specification for XT20 2 ton Electric Towing Tractor | ||||
| Identification | 1 | Product Model | XT20 | |
| 2 | Power supply | Electric | ||
| 3 | Operating type | sitting on | ||
| 4 | Load capacity | Q t | 2 | |
| 5 | Traction weight | F N | 686 | |
| 6 | Wheelbase | Y mm | 1030 | |
| weight | 1 | Weight | kg | 584 |
| Wheel | 1 | Tyres | PU | |
| 2 | Tyre size drive end | mm | 3.50-5-6PR | |
| 3 | Type size load end | mm | 4.00-8-6PR | |
| 4 | Wheels number (x=drive wheel) drive end/load end | 1/2x | ||
| 5 | Tread width drive end | mm | - | |
| 6 | Tread width load end | mm | 680 | |

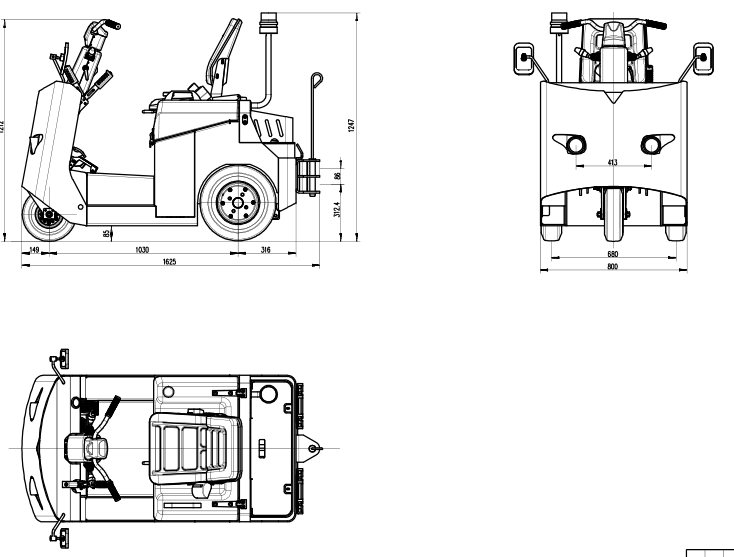

| Dimensions | 1 | Total height | h1 mm | 1330 |
| 2 | Draw hook Height | h2 mm | 259/309/334/384 | |
| 3 | Overall length | L mm | 1645 | |
| 4 | Overall width | W mm | 800 | |
| 5 | Minimum ground clearance | h3 mm | 82.5 | |
| 6 | Turning radius | R mm | 1805 | |
| Performance | 1 | Travel speed loaded/unloaded | km/h | 8/9 |
| 2 | tractive effort loaded/unloaded 60min | N | 686 | |
| 3 | Max tractive effort loaded/unloaded 5min | mm/s | 1783 | |
| 4 | Max gradeability loaded/unloaded | % | 5/8 | |
| 5 | Service brake | hydraulic | ||
| Electric Motor | 1 | Drive motor rating | kw | 2.5 |
| 3 | Battery voltage / nominal capacity | V/Ah | 24/180 | |
| 4 | Battery weight | kg | 180 | |
| Others | 1 | Type of drive control | AC | |
| 2 | Noise level at operator’s ear | dB(A) | <70 | |
