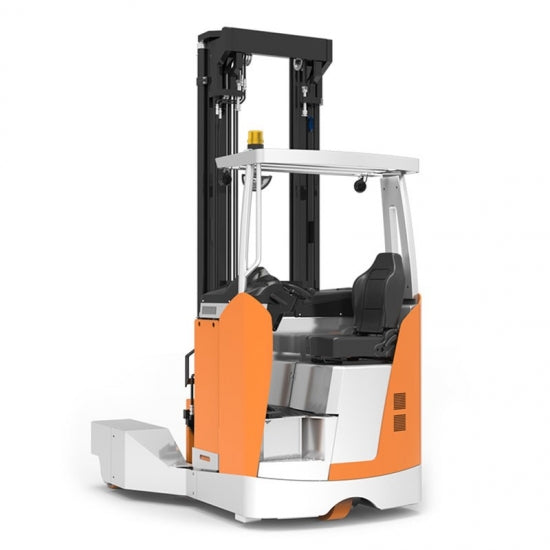

Zowell 3 ton Electric Multi-directional Forklift
Zowell 3 ton Electric Multi-directional Forklift is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Call 800-674-3699 For Delivery
Zowell 3 ton Electric Multi-directional Forklift is backordered and will ship as soon as it is back in stock.
Description:
Zowell RSEW series 3 ton electric multi-directional forklift is one product suitable for moving long cargo whose length is within 10m.It adopts thumb switch and proportional function to make the truck more stable and low noise during operation. Its maximum lifting height is up to 10.5m.It cannot only be used to replace the normal forklift, but also drive in multiple directions.
-
Brand: Zowell
-
Item NO.: RSEW130
-
Color: Orange color(Customized color is also acceptable)
3 ton Electric Multi-directional Forklift used for long cargo transfer
Zowell 3 ton multi directional reach truck is used for long material handling in very narrow aisle, lift height is 3m-10.5 m, it can do side travelling without truning, best choice for steel pipe, wood, rebar, metal profiles and others, with the following features:
1.Very narrow aisle working
2.Long material handling
3.Increase warehouse capacity
4.High cost performance
Specification:
| 1.1 | Manufacturer | Suzhou pioneer | Suzhou pioneer | |
| 1.2 | Brand | Zowell | Zowell | |
| 1.3 | Model | RSEW130 | RSEW130S | |
| 1.4 | Power supply | Electric | Electric | |
| 1.5 | operation type | half closing sitting | half closing sitting | |
| 1.6 | Load capacity | Q(kg) | 3000 | 3000 |
| 1.7 | Load center | C(mm) | 500 | 500 |
| 1.8 | Front overhang | x(mm) | 175 | 175 |
| 1.9 | Wheelbase | y(mm) | 1700 | 1700 |
| 2.1 | Truck weight (Include battery） | kg | 4400 | 4500 |
| 2.2 | Battery weight（±5%） | kg | 1020 | 1020 |
| 3.1 | Tyres Front/Rear | PU | PU | |
| 3.2 | Front load wheels（Diameter×Width）Single wheel | mm | φ300×135 | φ300×135 |
| 3.3 | Rear driving wheel（Diameter×width) Single wheel | mm | φ343×140 | φ343×140 |
| 3.4 | Wheel quantity Drive wgeel/Load wheel | pcs | 1X/2 | 1X/2 |
| 3.5 | Front wheels distance | b3(mm) | 1392 | 1392 |
| 4.1 | Lifting height | mm | 2500-4500 | 4500-10000 |
| 4.2 | Fork tilting front/rear | α/β(°) | 2/4 | 2/4 |
| 4.3 | Lifting height | h1(mm) | See attachment | See attachment |
| 4.4 | Overhead guard height | h5(mm) | 2190 | 2190 |
| 4.5 | Seat height/Operation platform height | (mm) | 1100/1350 | 1100/1350 |
| 4.6 | Min groundcleance | 32 | 32 | |
| 4.7 | Chassis groundcleance | h8(mm) | 75 | 75 |
| 4.8 | Left and right leg height | h10(mm) | 447 | 447 |
| 4.9 | Overall length (include fork） | l1(mm) | 2294 | 2346 |
| 4.10 | Reach distance | l2(mm) | 723 | 672 |
| 4.11 | Overall width | b1(mm) | 1728 | 1728 |
| 4.12 | Fork dimensions | l/e/s(mm) | 920/125/45 | 920/125/45 |
| 4.13 | Tail width | b2(mm) | 1230 | 1230 |
| 4.14 | Fork width | b5(mm) | 380-880 | 380-880 |
| 4.15 | Shelf width | b7(mm) | 870 | 870 |
| 4.16 | Minimum turning radidus | Wa(mm) | 1952 | 1952 |
| 4.17 | Minimum radius of turn in situ（when b5≤880mm） | （mm） | 1225 | 1235 |
| 4.18 | Minimum turning aisle width(right Angle) | （mm） | 2100 | 2100 |
| 4.19 | Minin aisle width when side moving Pallet 3000×1200×1000()（C=600mm） | （mm） | 2780【1】 | 2830【1】 |
| 4.20 | Minin aisle width when side moving Pallet 3000×1000×1000()（C=500mm） | （mm） | 2580【1】 | 2630【1】 |
| 5.1 | Driving speed Loaded/unloaded | km/h | 8/10 | 8/10 |
| 5.2 | Lifting speed Loaded/Unloaded | mm/s | 200/370 | 200/370 |
| 5.3 | Lowering speed Loaded/unloaded | mm/s | 210/170 | 210/170 |
| 5.4 | Gradeability Loaded/unloaded | %(tanθ ) | 7/15 | 7/15 |
| 5.5 | Brake | electric | electric | |
| 5.6 | Park | electric | electric | |

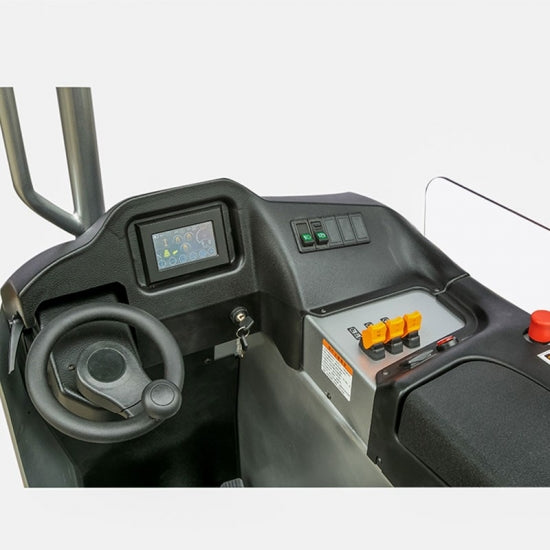

| 5.7 | Mode switch | HMI touch screen | HMI touch screen | |
| 5.8 | Drive wheel position display | All Wheel show | All Wheel show | |
| 6.1 | Driving motor type | AC | AC | |
| 6.2 | Driving motor(S2-60min) AC | kw | 8 | 8 |
| 6.3 | Lifting motor type | AC | AC | |
| 6.4 | Lifting motor，(S3-15%) | kw | 15 | 15 |
| 6.5 | Steering motor type | AC | AC | |
| 6.6 | Steering motor | kw | 0.7 | 0.7 |
