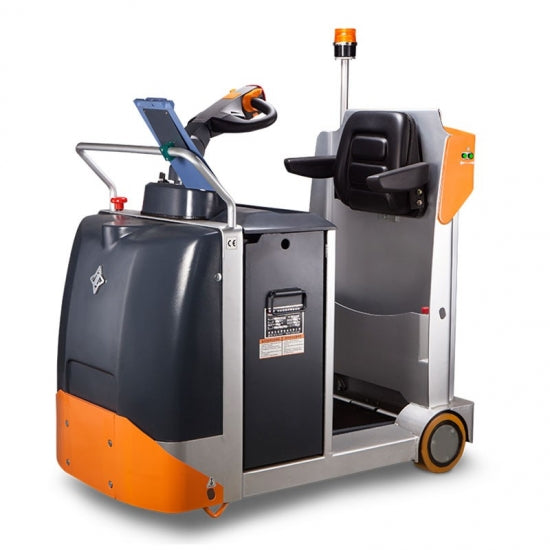

Zowell 3 ton Electric Tow Tractor with electric power steering
Zowell 3 ton Electric Tow Tractor with electric power steering is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Call 800-674-3699 For Delivery
Zowell 3 ton Electric Tow Tractor with electric power steering is backordered and will ship as soon as it is back in stock.
Description:

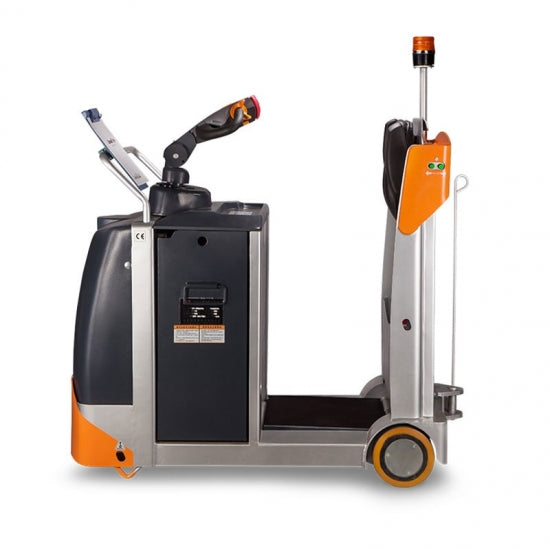

Zowell XTE series 3-5 ton tow tractor is suitable to be used in confined places, as well as appropriate for multiple load transfer over medium distance.
-
Brand: Zowell
-
Item NO.: XTE30
-
Color: Orange color(Customized color is also acceptable)

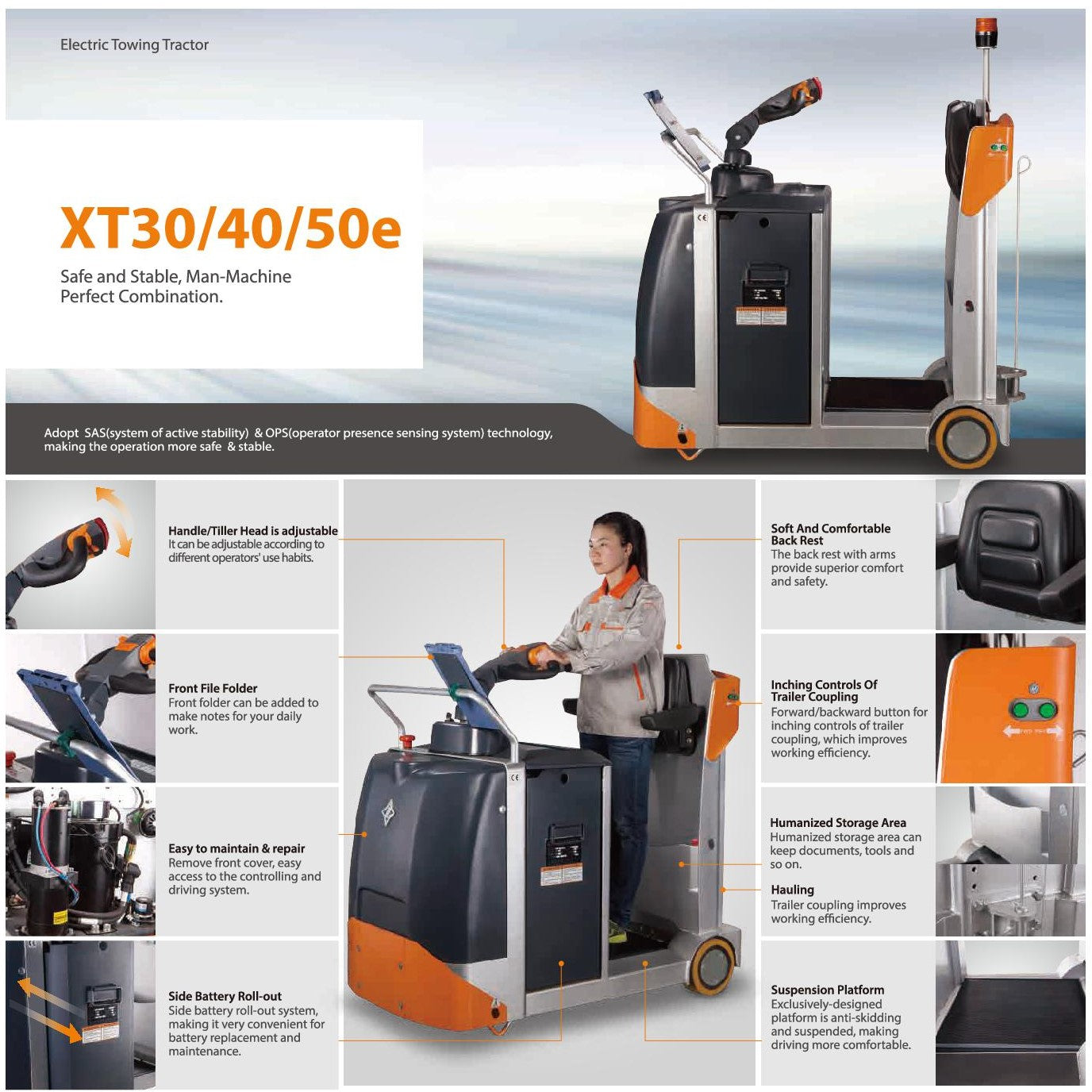

Detail features
1. Adjustable handle
The handle can be adjusted within a large range which can be suitable for different driving habits of different drivers by improving driving comfort.

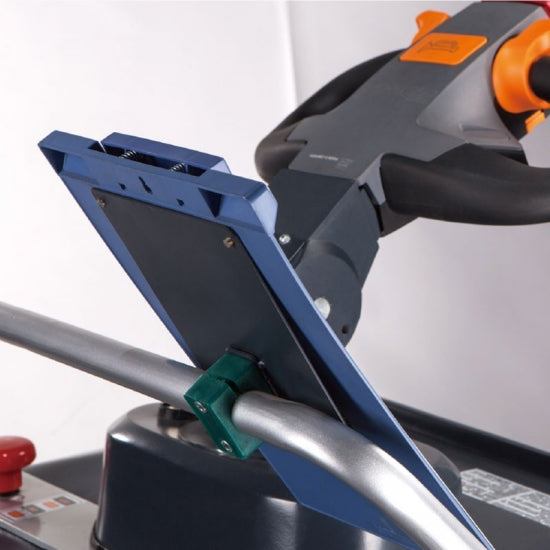

2. Prepositive folder
The required documents can be placed at the front of the tugger, thus improving working efficiency.
3. Part maintenance
Remove the front cover, the control system and driving system can be clearly accessible for easy maintenance.

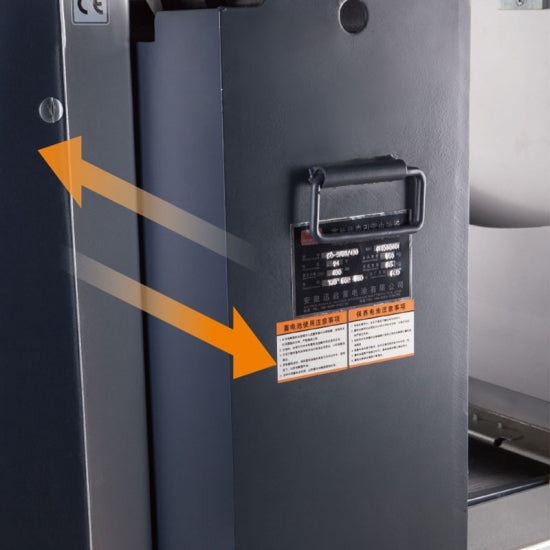

4. Side loading and unloading of storage battery
Side loading and unloading of storage battery can realize easy daily maintenance such as inspection and fluid replacement without lifting. There are optional batteries such as FAMM, GS, HOPPECKE, Trojan.
5. The wide backrest is equipped with an armrest on both side so that the operators can be more comfortable and safe when leaning on the backrest.

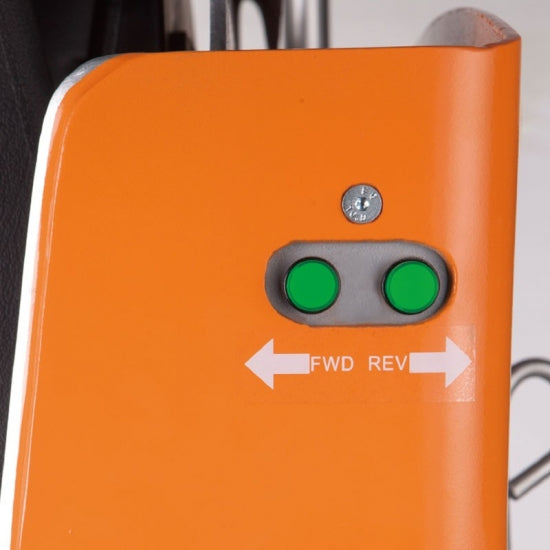

6. Short distance micro motion
There is one inching switch on both sides of the whole tugger, realizing easy docking of draft gear and carts. This can improve working efficiency of the tugger.
7. The storage box adopts a humanized design. It can be used to store papers and tools etc.
8. Floating pedal
This pedal features anti-slipping and shock absorption, thus optimizing driver safety and comfort.
Where Zowell electric towing tractor can be used for?
1.Wide space
2.High delivery frequency
3.Long working hours
4.Poor ground conditions, need solid wheel
5.Limited operating space
6.Floor working
7.Plant area needs turnover
8.Need to transport finished goods

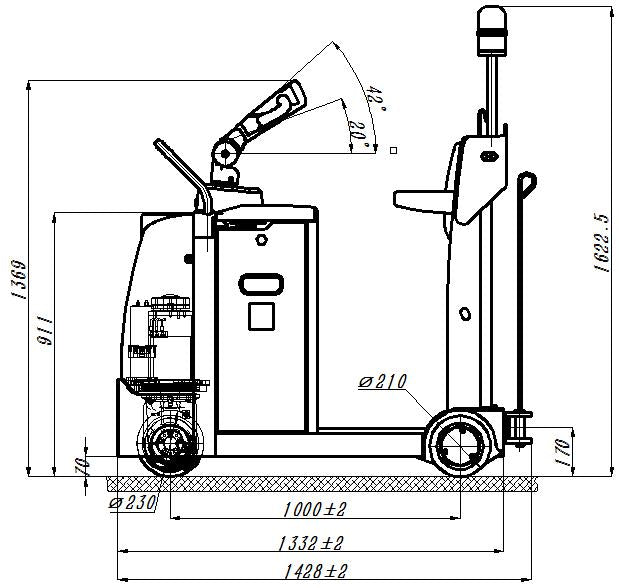

Specifications:
| Specification for XTE30 3 ton Electric Towing Tractor | |||||
| Characteristics | 1.1 | Manufacturer | ZOWELL | ||
| 1.2 | Model | XTE30 | |||
| 1.3 | Drive: electric | electric | |||
| 1.4 | Operator type: hand, pedestrian, stand-on, seat-on, order-picker | Stand-on | |||
| 1.5 | Load capacity/rated load | Q (t) | 3 | ||
| 1.7 | Rated drawbar pull | F (N) | ≥F | 750 | |
| 1.9 | Wheelbase | y (mm) | ±1% | 1021 | |
| Weight | 2.1 | Dead weight | kg | ±3% | 700 |
| 2.3 | Axle loading, unladen front/rear | kg | ±3% | 376/324 | |
| Tyres/chassis | 3.1 | Tyres | PU | ||
| 3.2 | Tyre size, front | Ø x w(mm) | Ø230x 82 | ||
| 3.3 | Tyre size, rear | Ø x w(mm) | Ø 210 x 85 | ||
| 3.5 | Wheels, number front/rear (x = driven wheels) | 1x/2 | |||
| 3.6 | Tread , front | b10 (mm) | ±2% | 0 | |
| 3.7 | Tread , rear | b11 (mm) | ±2% | 695 | |
| Dimension | 4.7 | Height of overhead guard(cabin) | h6 (mm) | ±1% | 1573.5 |
| 4.8 | Seat height relating to SIP/stand height | h7 (mm) | –/165 | ||
| 4.9 | Height of tiller in drive position min. / max. | h14 (mm) | 1365/1230 | ||
| 4.12 | Coupling height | h10 (mm) | ±2% | 170/220/270 | |
| 4.19 | Overall length | l1 (mm) | ±1% | 1442 | |
| 4.21 | Overall width | b1/b2 (mm) | ±1% | 792/800 | |
| 4.32 | Ground clearance, centre of wheelbase | m2 (mm) | -5% | 70 | |
| 4.35 | Turning radius | Wa (mm) | ≤Wa | 1210 | |
| Performance | 5.1 | Travel speed, laden/unladen | km/h | ± 10 % | 5.5/7 |
| 5.5 | Drawbar pull,laden/unladen | N | 750 | ||
| 5.6 | Max. drawbar pull, laden/unladen | N | 2200 | ||
| 5.8 | Max. gradeability, laden/unladen | % | 4/15 | ||
| 5.10 | Service brake | Electromagnetic | |||
| Electric-engine | 6.1 | Drive motor rating | kW | 2 | |
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | Special case | |||
| 6.4 | Battery voltage/nominal capacity | V/Ah | 24/240 | ||
| 6.5 | Battery weight | kg | 200 | ||
| Addition | 8.1 | Type of drive control | AC | ||
| 10.7 | Noise | dB (A) | < 70 | ||
