Description:
Zowell XTA40 4 ton tow tractor is superbly versatile and maneuverable. It is an ideal choice for applications requiring the rapid and efficient transfer of multiple trailer loads in various industrial and commercial applications as well as specialized repair workshops. This electric tow tractor is mainly used for towing and order packing and it is especially suitable for goods that move in the continuous flow. 4 ton tow tractor has a loading capacity up to 4,000 kg. This towing tractor advanced integrated drive and control system ensure reliable performance and high efficiency.
-
Brand: Zowell
-
Item NO.: XTA40
-
Color: Orange color(Customized color is also acceptable)
Features
1.Wheelbase provides a tight turning radius for maximum maneuverability and control in confined work environments.
2.Rear bridge drive unit provides this 4 ton tow tractor with excellent power and gradeability.
3.Ergonomically designed compartment allows easy operation of all controls and pedals to help reduce operators' fatigue.
4. This electric tow tractor is equipped with forward lever or reverse lever and floor-mounted accelerator pedal. Which provide fast and easy direction control changes.
5.zowell 4 ton tow tractor is installed with heavy duty

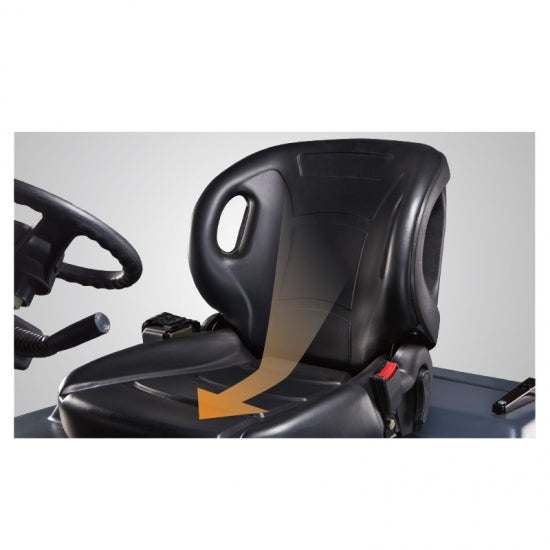

suspension seat with arms, multi-angle back support, sliding base and safety belt. This can improve operators 'comfort and safety.
6.Low step height allows for easy entry and exit.
7.Small-diameter steering wheel provides effortless steering of this electric tow tractor.
Specifications:
| Specification for XTA40 4 ton Electric Towing Tractor | |||||
| Characteristics | 1.1 | Manufacturer | ZOWELL | ||
| 1.2 | Manufacturer's type designation | XTA40 | |||
| 1.3 | Drive | Battery | |||
| 1.4 | Operator type: hand, pedestrian, stand-on, seat-on, order-picker | Seat-on | |||
| 1.5 | Load capacity/rated load | Q (t) | 4 | ||
| 1.7 | Rated drawbar pull | F (N) | ≥F | 1000 | |
| 1.9 | Wheelbase | y (mm) | ±1% | 1231 | |
| Weight | 2.1 | Dead weight | kg | ±3% | 783 |
| 2.3 | Axle loading, unladen front/rear | kg | ±3% | 279/504 | |
| Tyres/chassis | 3.1 | Tyres | Pneumatic tire | ||
| 3.2 | Tyre size, front | Ø x w(mm) | 3.50-5-6PR | ||
| 3.3 | Tyre size, rear | Ø x w(mm) | 4.00-8-6PR | ||
| 3.5 | Wheels, number front/rear (x = driven wheels) | 1/2x | |||
| 3.6 | Tread , front | b10 (mm) | ±2% | 245 | |
| 3.7 | Tread , rear | b11 (mm) | ±2% | 744 | |
| Dimension | 4.7 | Height of overhead guard(cabin) | h6 (mm) | ±1% | 1232 |
| 4.8 | Seat height relating to SIP/stand height | h7 (mm) | 816/412 | ||

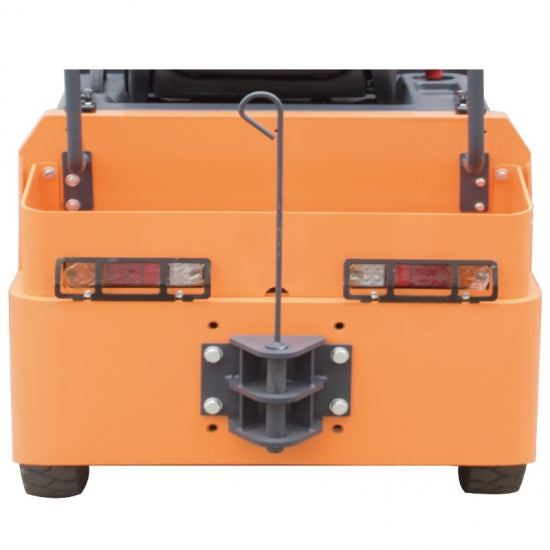

| 4.12 | Coupling height | h10 (mm) | ±2% | 283/333/358/408 | |
| 4.19 | Overall length | l1 (mm) | ±1% | 1876 | |
| 4.21 | Overall width | b1/b2 (mm) | ±1% | 860 | |
| 4.32 | Ground clearance, centre of wheelbase | m2 (mm) | -5% | 92 | |
| 4.33 | Load dimension b 12 × l 6 crossways | b 12 × l 6 (mm) | 1447 | ||
| 4.35 | Turning radius | Wa (mm) | ≤Wa | 1590 | |
| Performance | 5.1 | Travel speed, laden/unladen | km/h | ± 10 % | 7/13 |
| 5.5 | Drawbar pull,laden/unladen | N | 1000 | ||
| 5.6 | Max. drawbar pull, laden/unladen | N | 4000 | ||
| 5.7 | Gradeability, laden/unladen | % | 5.6/14 | ||
| 5.10 | Service brake | Hydraulic | |||
| Electric-engine | 6.1 | Drive motor rating | kW | 4 | |
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | Special case | |||
| 6.4 | Battery voltage/nominal capacity | V/Ah | 24/280 | ||
| 6.5 | Battery weight | kg | 285 | ||
| Addition | 8.1 | Type of drive control | AC | ||
| 10.7 | Noise | dB (A) | < 70 | ||
