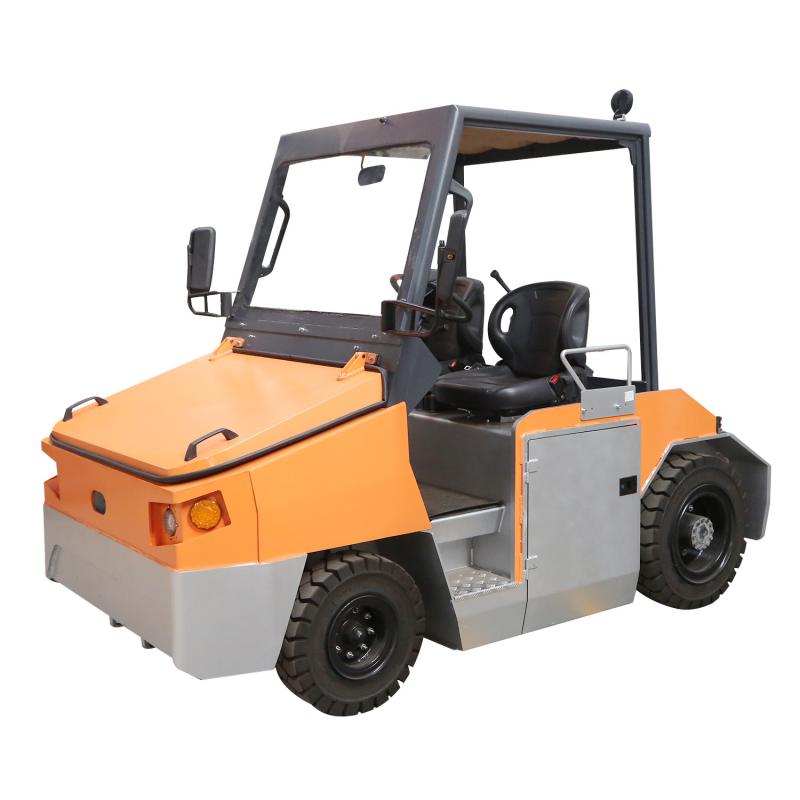

Zowell 55110lbs battery towing tractor
Zowell 55110lbs battery towing tractor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Call 800-674-3699 For Delivery
Zowell 55110lbs battery towing tractor is backordered and will ship as soon as it is back in stock.
Description:

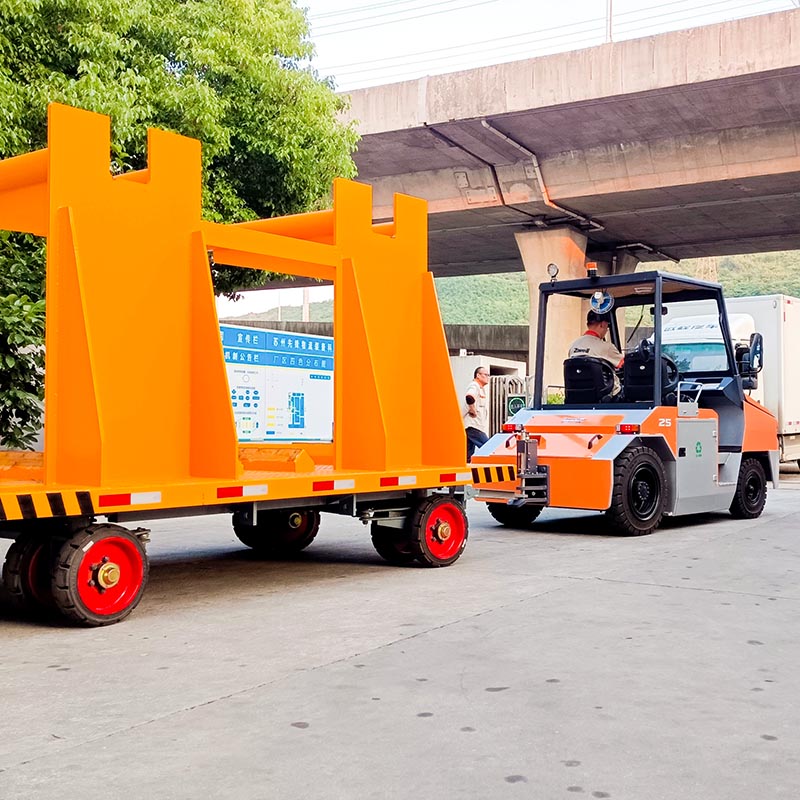

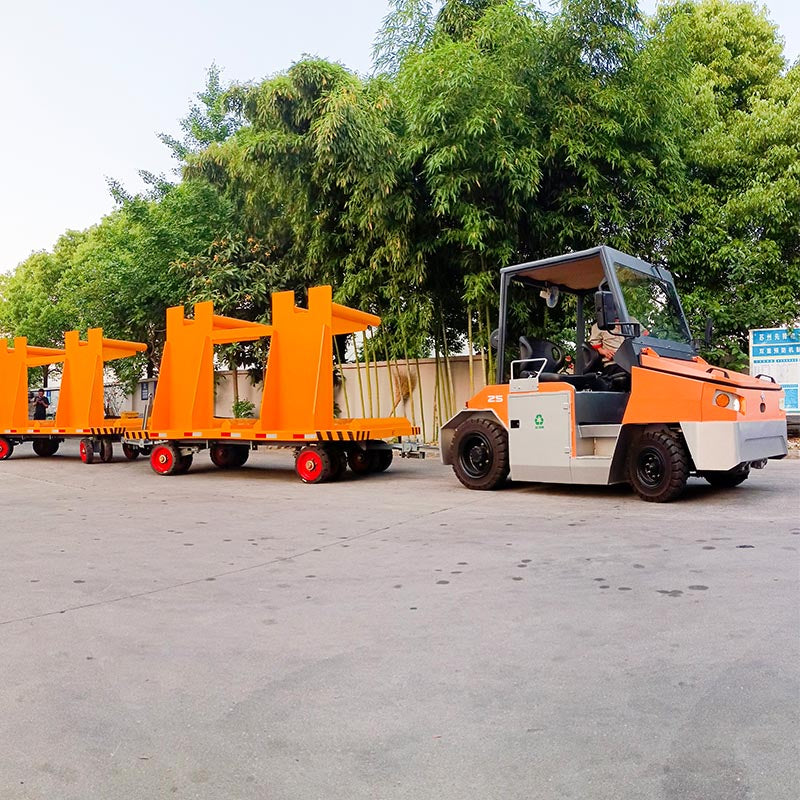

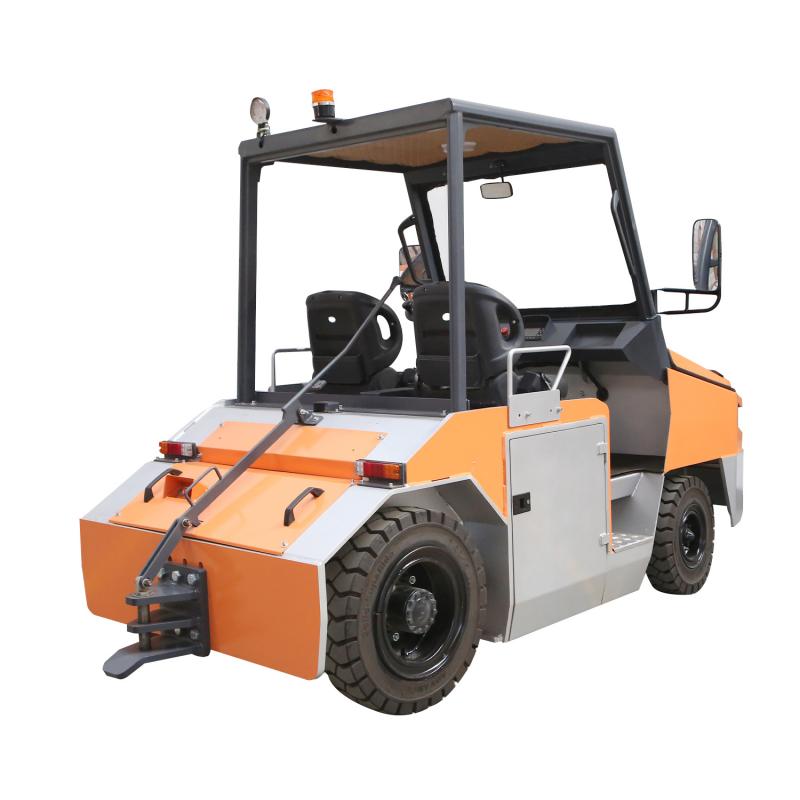

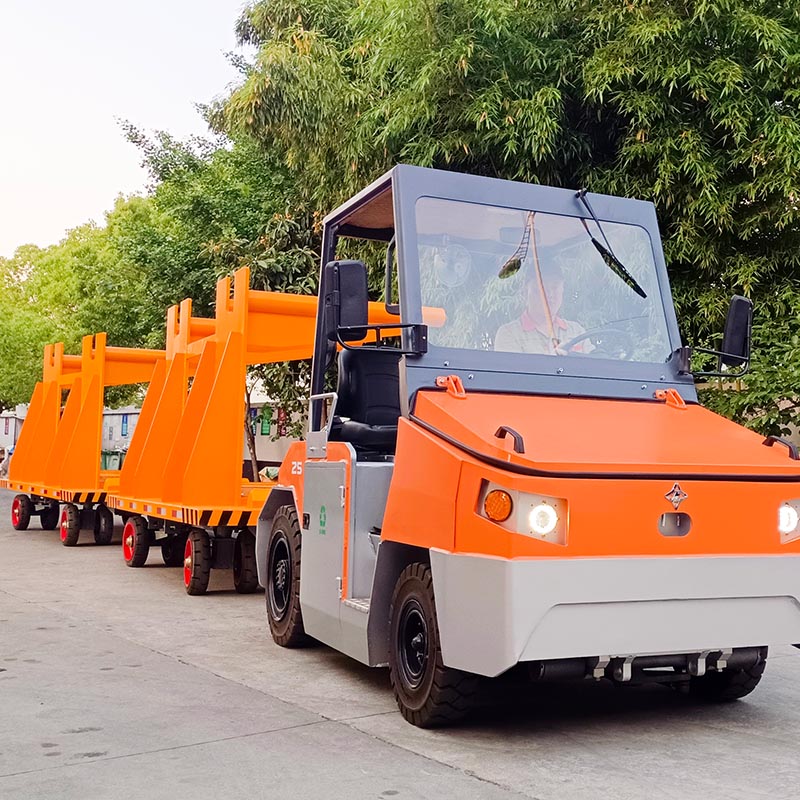

Newly released Zowell electric towing tractor with a towing capacity of 25,000kg
-
Brand: Zowell
-
Item NO.: XT250
-
Product Origin: China
-
Color: Orange(customized is available)
Product Detail:
Safety: The heavy duty chassis and cab module provide assured protection for the operator. A low center of gravity ensures outstanding stability.
Performance: With a nominal towing capacity of 25.0 tonne and unladen traction speed of 20 km/h the XT250 offers flexible high performance which is optimized by the Zowell AC control system that provides precise, energy saving control
of acceleration and speed for high productivity.

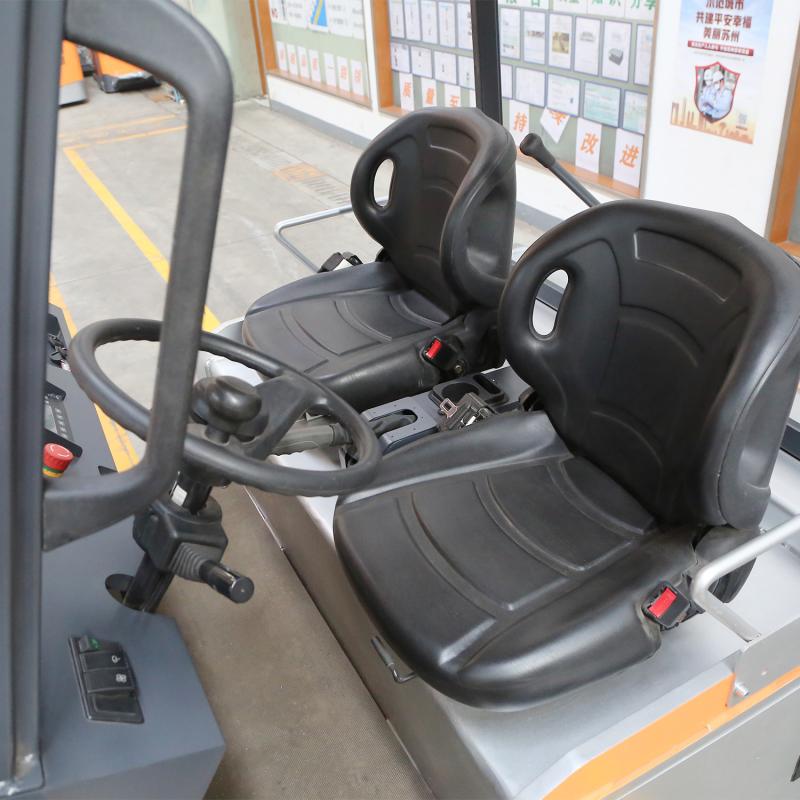

Comfort:A low step facilitates access to spacious operator’s cabin where the automotive layout of the pedals, direction lever, steering wheel and controls.
Reliability:Designed for intensive heavy duty applications the rugged, chassis is constructed from heavy section steel plate for optimum torsional stiffness and rounded corners for high resistance to impacts.
Productivity: Powerful, high torque 23 kW AC drive motors provide impressive pulling power for a variety of intensive applications. The energy saving Zowell AC digital controller combined with excellent manoeuvrability and an intuitive interface between the operator and tractor, translates that power into versatile, seamless performance and high productivity.

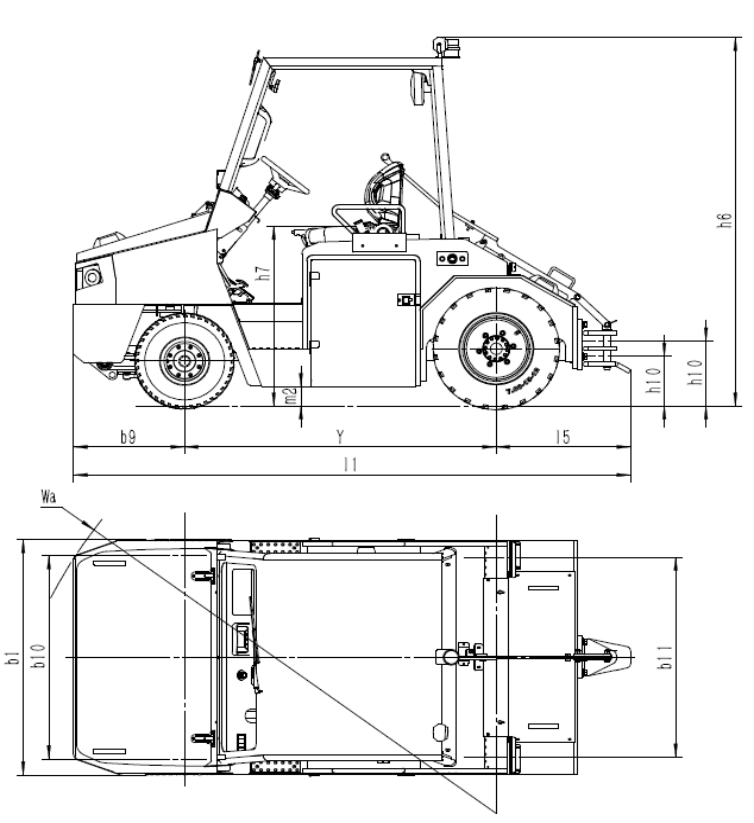

Specifications:
| Characteristics | 1.1 | Manufacturer | ZOWELL | ||
| 1.2 | Manufacturer's type designation | TSA1250 | |||
| 1.3 | Drive: electric (battery or mains), diesel, petrol, fuel gas | Battery | |||
| 1.4 | Operator type: hand, pedestrian, stand-on, seat-on, order-picker | Seat-on | |||
| 1.5 | Load capacity/rated load | Q (t) | 25 | ||
| 1.7 | Rated drawbar pull（6Km/h） | F (KN) | ≥F | 13 | |
| 1.9 | Wheelbase | Y (mm) | ±1% | 1850 | |
| Weight | 2.1 | Dead weight | kg | ±3% | 4530 |
| 2.2 | Axle loading, laden front/rear | kg | ±3% | – | |
| 2.3 | Axle loading, unladen front/rear | kg | ±3% | 2100 /2430 | |

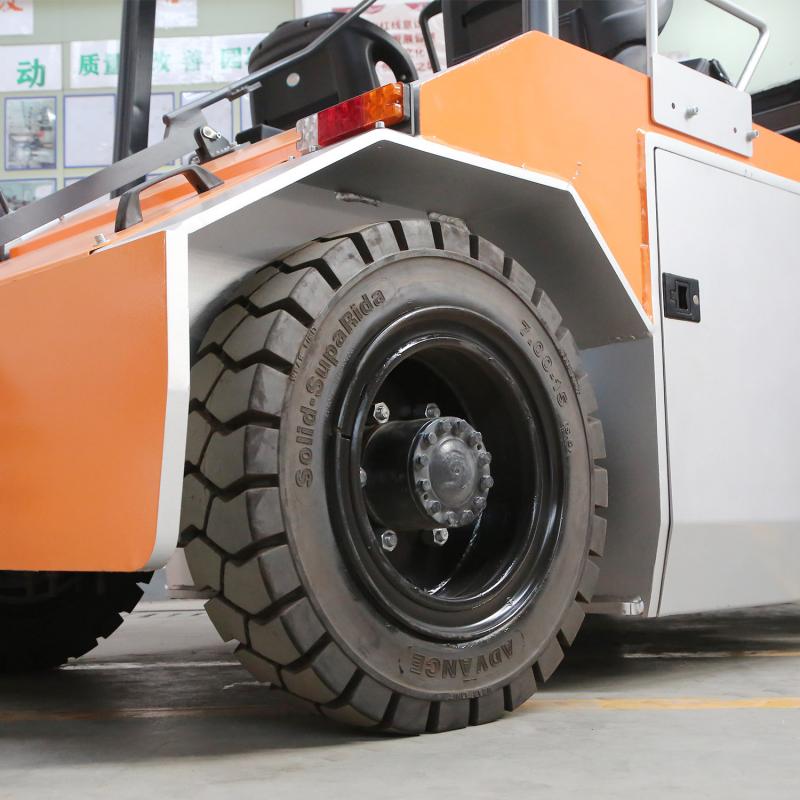

| Tyres/chassis | 3.1 | Tyres: Solid rubber (R), Superelastic (S),Pneumatic(P), Polyurethane (PU) | P | ||
| 3.2 | Tyre size, front | Ø x w(mm) | 6.50-10-10PR | ||
| 3.3 | Tyre size, rear | Ø x w(mm) | 7.00-15-12PR | ||
| 3.4 | Additional wheels (dimensions) | Ø x w(mm) | – | ||
| 3.5 | Wheels, number front/rear (x = driven wheels) | 2/2x | |||
| 3.6 | Tread , front | b10 (mm) | ±2% | 1250 | |
| 3.7 | Tread , rear | b11 (mm) | ±2% | 1230 | |
| Dimension | 4.7 | Height of overhead guard(cabin) | h6 (mm) | ±1% | 2250 |
| 4.8 | Seat height relating to SIP/stand height | h7 (mm) | 1100 | ||
| 4.9 | Height of tiller in drive position min. / max. | h14 (mm) | – | ||
| 4.12 | Coupling height | h10 (mm) | ±2% | 304.8/400 | |
| 4.13 | Loading height,unladen | h11 (mm) | – | ||
| 4.16 | Length of loading surface | l3 (mm) | – | ||
| 4.17 | Overhang | l5 (mm) | ±3% | 800 | |
| 4.17.1 | Overhang, cabin | l5.1 (mm) | – | ||
| 4.18 | Front overhang distance | b9 (mm) | 655 | ||
| 4.19 | Overall length | l1 (mm) | ±1% | 3355 | |
| 4.21 | Overall width | b1/b2 (mm) | ±1% | 1450 | |
| 4.32 | Ground clearance, centre of wheelbase (min) | m2 (mm) | -5% | 120 | |
| 4.33 | Load dimension b 12 × l 6 crossways | b 12 × l 6 (mm) | |||
| 4.34 | Aisle width predetermined load dimensions | Ast (mm) | – | ||
| 4.35 | Turning radius (min) | Wa (mm) | ≤Wa | 3500 | |
| 4.36 | Minimum pivoting point distance | b13 (mm) | – | ||
| Performance | 5.1 | Travel speed, laden/unladen | km/h | ± 10 % | 10/20 |
| 5.1.1 | Travel speed, laden/unladen, backwards | km/h | – | ||
| 5.5 | Drawbar pull,laden/unladen(S2 60min)， | KN | 13 | ||
| 5.6 | Max. drawbar pull, laden/unladen(S2 5min) | KN | 18 | ||
| 5.7 | Gradeability, laden/unladen(S2 30min)， | % | 5/25 | ||
| 5.8 | Max. gradeability, laden/unladen(S2 5min)， | % | – | ||
| 5.9 | Acceleration, laden/unladen(10m)， (sur 10 m) | s | - | ||
| 5.10 | Service brake | Hydraulic | |||
| Electric-engine | 6.1 | Drive motor rating S2 60 min | kW | 23 | |
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | Special case | |||
| 6.4 | Battery voltage/nominal capacity K5 | V/Ah | 80/630 | ||
| 6.5 | Battery weight | kg | 1615 | ||
| 6.6 | Energy consumption according to VDI cycle | kWh/h | – | ||
| Addition | 8.1 | Type of drive control | AC | ||
| 10.7 | Sound pressure level at the driver’s seat according to EN 12053 | dB (A) | < 70 | ||
| 10.8 | Towing coupling, type DIN 15170 | Plug-in type |
