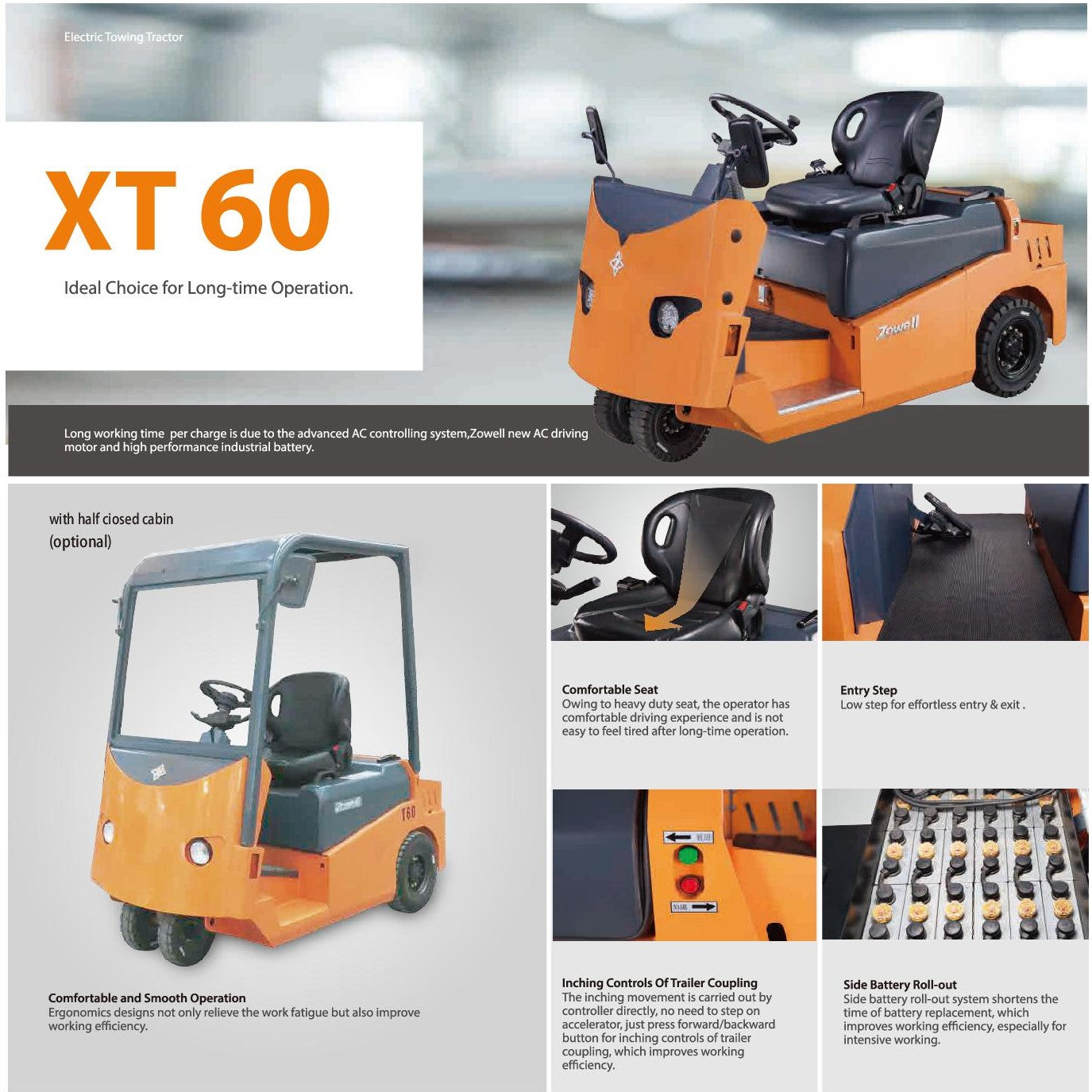

Zowell 6 Ton Electric Tow Tractor with half closed cabin
Zowell 6 Ton Electric Tow Tractor with half closed cabin is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Call 800-674-3699 For Delivery
Zowell 6 Ton Electric Tow Tractor with half closed cabin is backordered and will ship as soon as it is back in stock.
Description:

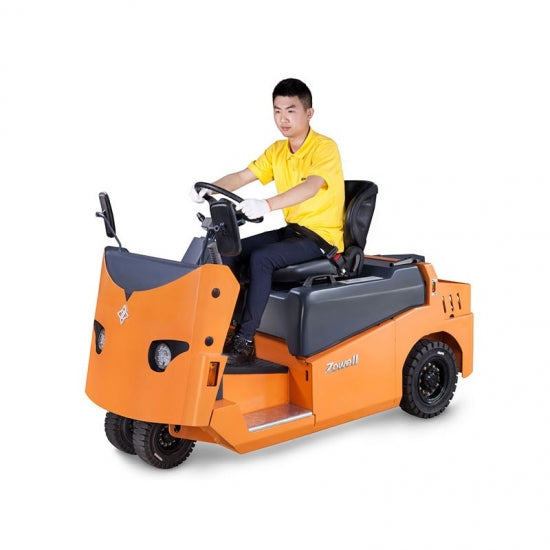

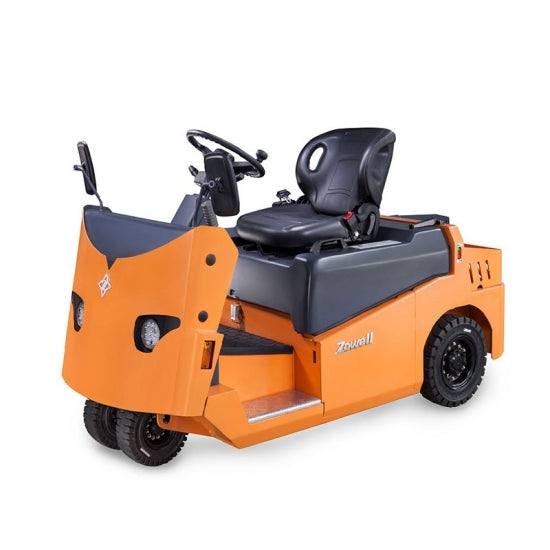

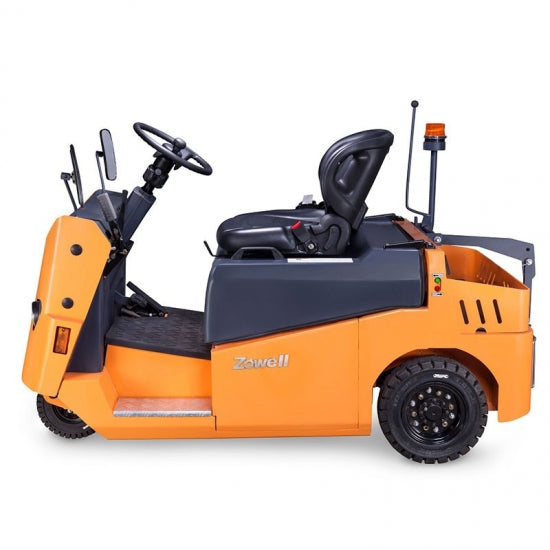

Zowell XTH60 6 ton electric tow tractor is an ideal vehicle for fields where rapid and efficient transfer of various trailer loads is required ,including industrial and commercial industries and special repair workshops. It is very versatile and maneuverable.Its loading capacity reaches up to 6000kg.Besides,its special construction ensures durability and consistent reliability.And weather protection cabin is available for outdoor use. It is very popular in automobile industry and logistic industry.It is mainly used for towing and order picking, and it is especially suitable for goods that move in the continuous flow. It is widely used for industries that where just-in-time principles are needed.
-
Brand: Zowell
-
Item NO.: XTH60
-
Color: Orange color(Customized color is also acceptable)
Fetures of 6 ton Electric Tow Tractor
1.48V electrical system for optimal performance when in tough applications.
2. Its hydraulic drum brakes guarantee smooth stop even when towing heavy loads.
3. Heavy-gauge unitized steel frame construction.

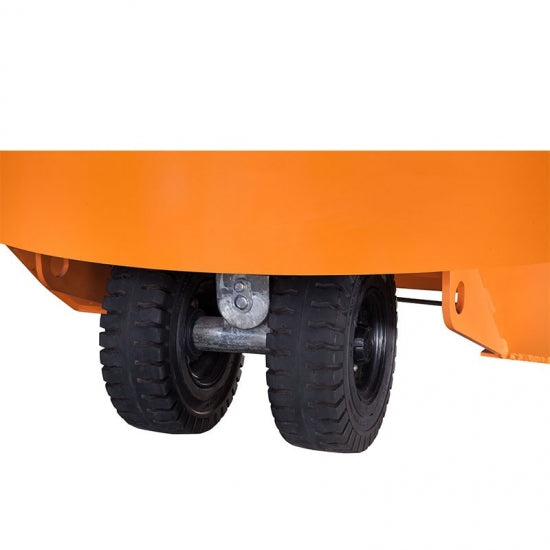

4. Besides providing the operator with easier steering and a smoother ride, pneumatic dual steer tires increase the lifespan.
Operability & Performance:
1. Transistor control system offers smooth acceleration, as well as improves battery efficiency.
2. Three-wheel construction and a short wheelbase provide a tight turning radius for maximum maneuverability and control in confined work environments.

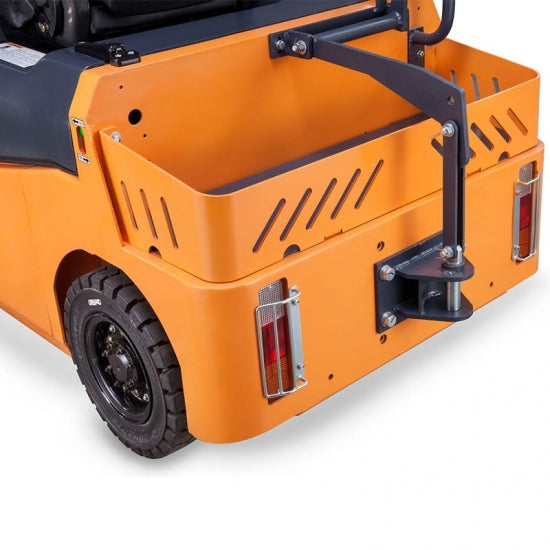

3. Cargo rack allows operators to securely place packages onto the rear of the vehicle.
4. Transversely mounter drive motor provides excellent power and grade ability.
5. 5.Ceter pin mounter front axle provides a smoother ride.
Ergonomics:
1.Ergonomically designed compartment allows easy operation of all controls and pedals to help reduce operator fatigue.
2.Forward/reverse lever and floor-mounted accelerator pedal provide fast and easy direction changes.
3.Heavy duty suspension seat with arms, multi-angle back support, sliding base and safety belt contribute to the improvement of overall comfort and safety of operator.
4.Low step height ensures easy entry and exit.
5.Small diameter steering wheel provides effortless steering.
Specifications:

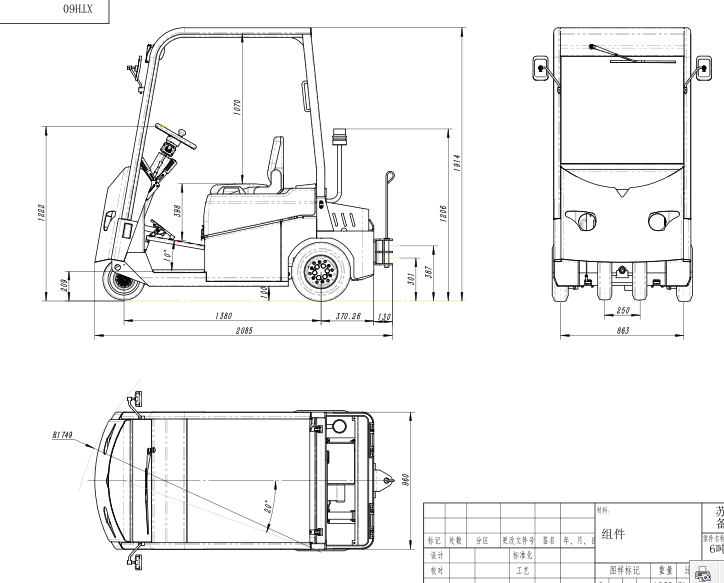

| Specification for 6 ton Electric Towing Tractor | |||||
| Characteristics | 1.1 | Manufacturer | ZOWELL | ||
| 1.2 | Manufacturer's type designation | XTH60 | |||
| 1.3 | Drive: electric (battery or mains), diesel, petrol, fuel gas | Battery | |||
| 1.4 | Operator type: hand, pedestrian, stand-on, seat-on, order-picker | Seat-on | |||
| 1.5 | Load capacity/rated load | Q (t) | 6 | ||
| 1.7 | Rated drawbar pull | F (N) | ≥F | 1170 | |
| 1.9 | Wheelbase | y (mm) | ±1% | 1350 | |
| Weight | 2.1 | Dead weight | kg | ±3% | 1248 |
| 2.3 | Axle loading, unladen front/rear | kg | ±3% | 470 / 778 | |
| Tyres/chassis | 3.1 | Tyres: Solid rubber (R), Superelastic (S),Pneumatic(P), Polyurethane (PU) | P | ||
| 3.2 | Tyre size, front | Ø x w(mm) | 3.50-5-6PR | ||
| 3.3 | Tyre size, rear | Ø x w(mm) | 4.00-8-6PR | ||
| 3.5 | Wheels, number front/rear (x = driven wheels) | 1/2x | |||
| 3.6 | Tread , front | b10 (mm) | ±2% | 245 | |
| 3.7 | Tread , rear | b11 (mm) | ±2% | 860 | |
| Dimension | 4.7 | Height of overhead guard(cabin) | h6 (mm) | ±1% | 1245 |
| 4.8 | Seat height relating to SIP/stand height | h7 (mm) | 822/424 | ||
| 4.12 | Coupling height | h10 (mm) | ±2% | 275/325/375 | |
| 4.19 | Overall length | l1 (mm) | ±1% | 2052 | |
| 4.21 | Overall width | b1/b2 (mm) | ±1% | 984 | |
| 4.32 | Ground clearance, centre of wheelbase (min) | m2 (mm) | -5% | 95 | |
| 4.33 | Load dimension b 12 × l 6 crossways | b 12 × l 6 (mm) | 1720 | ||
| Performance | 5.1 | Travel speed, laden/unladen | km/h | ± 10 % | 7/15 |
| 5.5 | Drawbar pull,laden/unladen | N | 1170 | ||
| 5.6 | Max. drawbar pull, laden/unladen | N | 4410 | ||
| 5.7 | Gradeability, laden/unladen | % | 5/25 | ||
| 5.10 | Service brake | Hydraulic | |||
| Electric-engine | 6.1 | Drive motor rating S2 60 min | kW | 4 | |
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | Special case | |||
| 6.4 | Battery voltage/nominal capacity | V/Ah | 48/320 | ||
| 6.5 | Battery weight | kg | 540 | ||
| Addition | 8.1 | Type of drive control | AC | ||
| 8.2 | Noise | dB (A) | < 70 | ||
