Description:

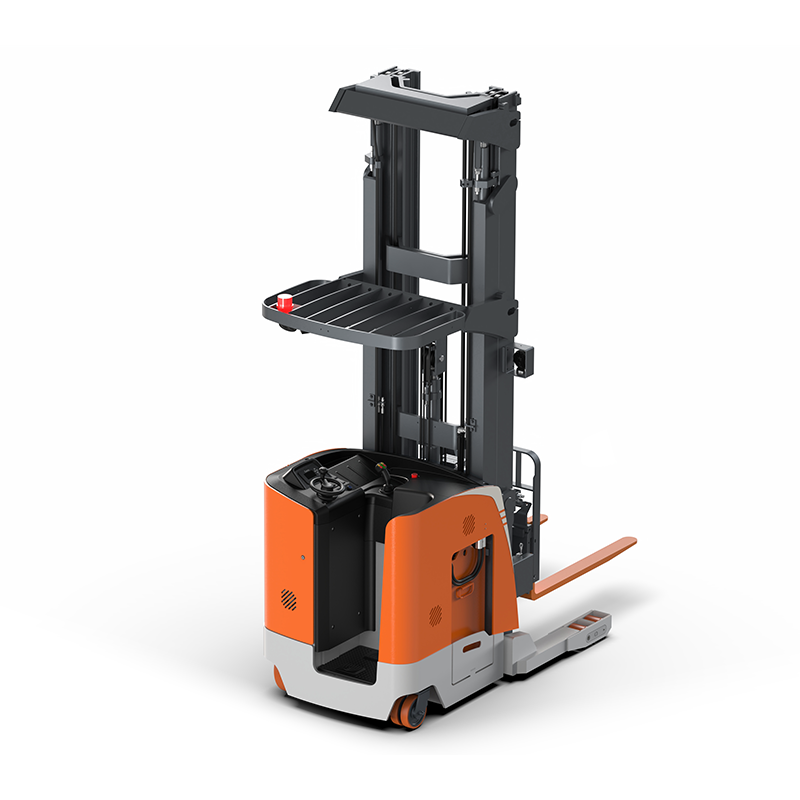

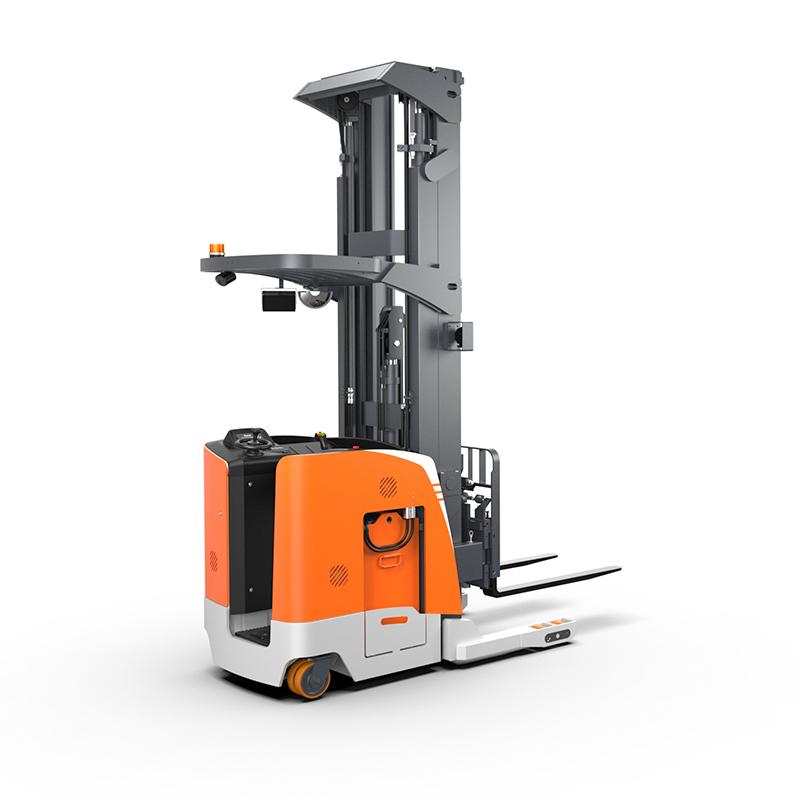

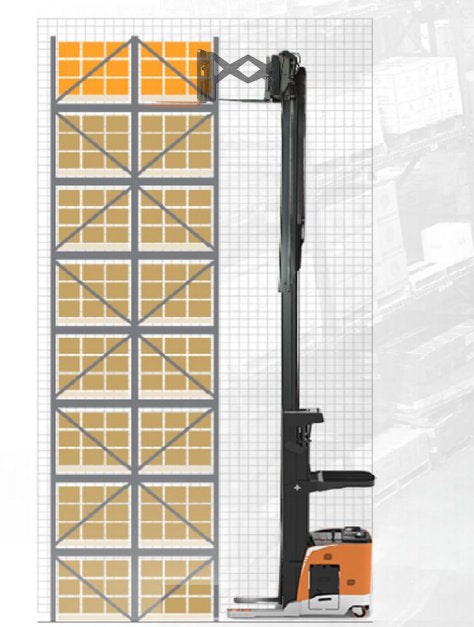

Zowell RRE series is double deep reach truck for narrow aisle stacking. The Maximum lifting height can be 10160mm with load of 3200 lbs(1450kg). Its unique reaching structure would help it to reach up to 1080mm and reach the double deep shelves.

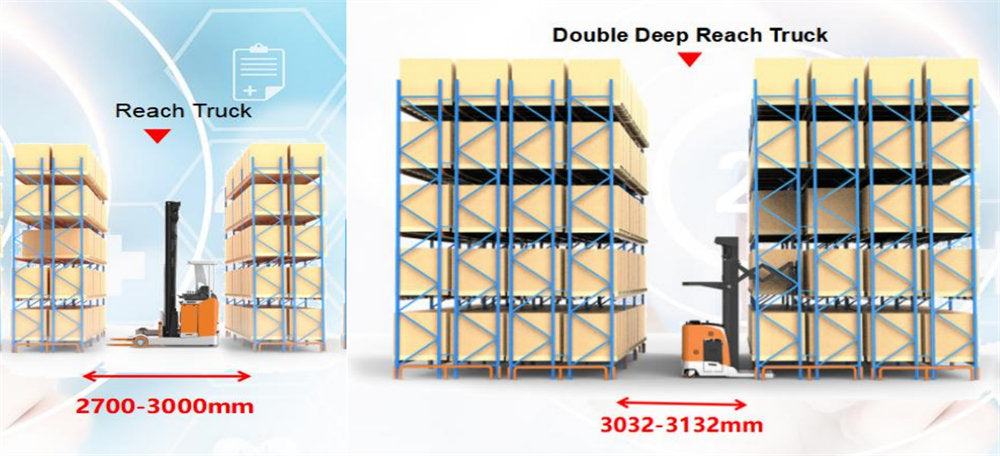

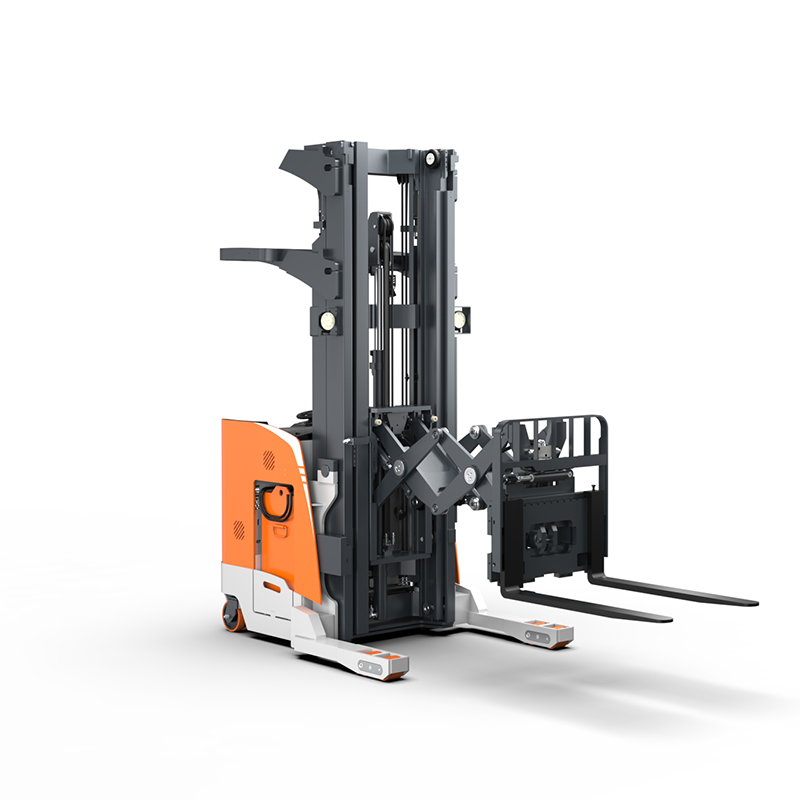

It can be extended and retracted as fast as pantographs. It is suitable for double-row shelf space access operation and significantly increase storage density. Reduces space needed for aisles. It is your idea choice for high-throughput stock where restricted access is not a problem.
-
Brand: Zowell
-
Item NO.: RRE15
-
Color: Orange color(Customized color is also acceptable)
Suitable for Double deep racking
Suitable working conditions
Cargo weight 1500kg and below
Pallet size is relatively uniform
Low standard of floor strength and horizontal degree
Indoor operation only
High pallet throughput rate required
Batch storage of same-category items without FIFO requirements
Specification Sheet:
| Specification of RRE115 | |||||
| 1.1 | Manufacturer | Zowell | |||
| 1.2 | Model | RRE115 | |||
| 1.3 | Power | Electric | |||
| 1.4 | Operator Type | stand | |||
| 1.5 | Load Capacity | Q | ib.(kg) | 1500kg | |
| 1.6 | Load Centre | c | in.(mm) | 23.6＂(600mm) | |
| 1.8 | Load Distance | forks retracted | x | in.(mm) | 12.6＂(287mm) |
| 1.9 | Wheel Base | y | in.(mm) | 64.96＂(1650mm) | |
| 2.1 | Truck Weight | less battery | ib.(kg) | 8466 lbs(3840kg) | |
| 2.2 | Axle loading(Front/Rear) | W/O Load,forks retracted | ib.(kg) | 4336 lbs(1967kg)/6,069 lbs(2753kg) | |
| With Load,forks extension | ib.(kg) | 8139 lbs(3692kg)/5463 lbs(2478kg) | |||
| With Load,forks retracted | ib.(kg) | 10716 lbs(4861kg)/2885 lbs(1309kg) | |||
| 3.1 | Tyre Type | poly | |||
| 3.2 | Tyres | power unit side,drive | in.(mm) | 13.5＂×2.9＂(φ343mm×140mm) | |
| 3.3 | Tyres | load side | in.(mm) | 5.0＂×4.1＂(φ127mm×104mm) | |
| 3.4 | Castor Wheel | in.(mm) | 8.0＂×2.0＂(φ200mm×50mm) | ||
| 3.5 | Wheels | no.(x=driven) power unit side/load side | 1x,2/8 | ||
| 3.7 | Track Width | power unit side | b10 | in.(mm) | 31.5＂(800mm) |
| 4.1 | Fork Carriage Tilt | forward/backward | angle | ° | 3/4 |
| 4.2 | Mast | collapsed height | h1 | in.(mm) | 140＂(3556mm) |
| 4.3 | Free Lift | h2 | in.(mm) | 104＂(2642mm) | |
| 4.4 | Lift Height | h3 | in.(mm) | 321＂(8150mm) | |
| 4.5 | Mast | extended height w.load backrest | h4 | in.(mm) | 357＂(9068mm) |
| 4.7 | Overhead Guard Height | h6 | in.(mm) | 95＂(2415mm) | |
| 4.10 | Outtrigger Height | standard wheel | h8 | in.(mm) | 5.1＂(130mm) |
| 4.20 | Headlength ●Distance from the front face of the forks to the front of the vehicle | l2 | in.(mm) | 63.1＂(1604mm) | |
| 4.21 | Overall Width | power unit side | b1 | in.(mm) | 42.9＂(1098mm) |
| 4.22 | Fork Dimension | th×w×l | in.(mm) | 40/100/1070 | |
| 4.23 | Fork Carriage | 2A | |||
| 4.24 | Fork Carriage Width | incl.load backrest | b3 | in.(mm) | 32.44＂(824mm) |
| 4.25 | Width Across Forks | b5 | in.(mm) | 7.9＂-30.2＂(200-768mm) | |
| 4.26 | Inside Straddle | in 25mm increments | b4 | in.(mm) | 34.7＂-50＂(881-1081mm) |
| 4.28 | Reach | l4 | in.(mm) | 40.5＂(1030mm) | |
| 4.32 | Ground Clearance | centre wheelbase | in.(mm) | 1.97＂(50mm) | |
| 4.33 | Working Aisle Width | 1200×1000 deep | Ast | in.(mm) | 119＂(3023mm) |
| 4.33 | Working Aisle Width | 1000×1200 deep | Ast | in.(mm) | 123.3＂(3132mm) |
| 4.34 | Working Aisle Width | 800×1200 deep | Ast | in.(mm) | 121.6＂(3088mm) |
| 4.35 | Turning Radius | Wa | in.(mm) | 74.6＂(1895mm) | |
| 4.37 | Overall Length | length over outriggers | l7 | in.(mm) | 81.4＂(2067mm) |
| 4.71 | Backrest Height | in.(mm) | 62＂(1576mm) | ||
| 4.72 | Entry Step Height | in.(mm) | 10.8＂(275mm) | ||
| 4.73 | 3rd Post | in.(mm) | - | ||
| 5.1 | Travel Speed | w./w.o. load power unit first | km/h | 10/10 km/h | |
| forks first | 10/10 km/h | ||||
| 5.2 | Lift Speed | w./w.o. load | m/s | 0.33/0.5 m/s | |
| 5.3 | Lower Speed | w./w.o. load | m/s | 0.5/0.5 m/s | |
| 5.4 | Reach Speed | m/s | 0.3 | ||
| 5.10 | Brakes | Electric | |||
| 6.1 | Traction Motor | 60 min.rating | kw | 8kw | |
| 6.2 | Lift Motor | 15% on time | kw | 12.5kw | |
| 6.3 | Max.Battery Box Size | l×h×w | mm | 413×985×788 | |
| 6.4 | Battery Voltage | nominal capacity 5h rating | V/Ah | 48V/500Ah | |
| 6.5 | Battery Weight | minimum | kg | 1880 lbs(853kg) | |
| 8.1 | Type of Controller | traction/lift/steering | AC | ||
