Zowell Standing Type 20 Ton Electric Tow Head
Zowell Standing Type 20 Ton Electric Tow Head is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Call 800-674-3699 For Delivery
Zowell Standing Type 20 Ton Electric Tow Head is backordered and will ship as soon as it is back in stock.
Description:
Zowell 20 ton tow head is used for moving heavy glass and it is one product to change your mind from one pallet truck to it.
-
Brand: Zowell
-
Item NO.: XT200

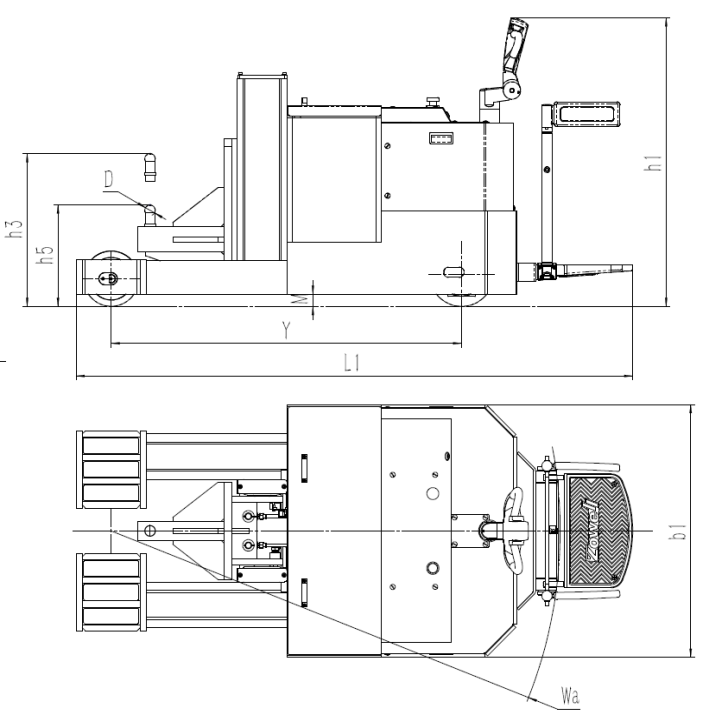

Specifications:
| XTB200A | ||||
| Identification | 1 | Product Model | XTB200A | |
| 2 | Power supply | Electric | ||
| 3 | Operating type | Standing on | ||
| 4 | Load capacity | Q kg | 20000 | |
| 7 | Wheelbase | L2 mm | 1704 | |
| weight | 1 | Weight (without battery) | kg | 2690 |
| Wheel | 1 | Tyres | PU | |
| 2 | Tyre size drive end | mm | Ф312x140 | |
| 3 | Type size load end | mm | Ф267x76 | |
| 5 | Wheels number (x=drive wheel) drive end/load end | 2x/6 | ||
| 6 | Tread width drive end | mm | 553 | |
| 7 | Tread width load end | mm | 593 | |
| Dimensions | 1 | Total height | h1 mm | 1394/1290 |
| 2 | Lift height | h4 mm | 690 | |
| 4 | platform height | h5 mm | 200 | |
| 5 | Height of handle in drive position (Max/Min) | h1/h2 mm | 1394/837 | |
| 6 | armrest height | mm | 988 | |
| 6 | Overall length | L1 mm | 2707 | |
| 8 | Overall width | W1 mm | 1220 | |
| 9 | Diameter of Drawing head | mm | 50 | |
| 11 | Minimum ground clearance | h6 mm | 60 | |
| 12 | Turning radius | Wa mm | 3881 | |
| Performance | 1 | Travel speed loaded/unloaded | km/h | 5/6 |
| 2 | Lift speed loaded/unloaded | mm/s | 20/30 | |
| 3 | Lowering speed loaded/unloaded | mm/s | 30/20 | |
| 4 | Max gradeability loaded/unloaded | % | 5/15 | |
| 5 | Service brake | Electromagnetic | ||
| Electric Motor | 1 | Drive motor rating | kw | 4.5 |
| 2 | Lift motor rating | kw | 5.5 | |
| 3 | Battery voltage / nominal capacity | V/Ah | 48/XXX | |
| 4 | Battery weight | kg | XXX | |
| Others | 1 | Type of drive control | MOSFET Control | |
| 2 | Noise level at operator’s ear | dB(A) | <70 | |
